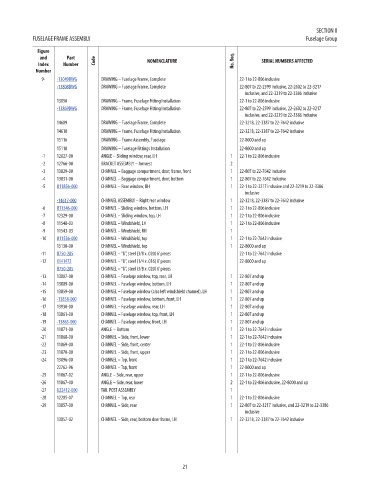

SECTION II
FUSELAGE FRAME ASSEMBLY Fuselage Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
9- -13049DWG DRAWING – Fuselage Frame, Complete 22-1 to 22-806 inclusive 65.97
-13808DWG DRAWING – Fuselage Frame, Complete 22-807 to 22-2599 inclusive, 22-2602 to 22-3217 65.97
inclusive, and 22-3219 to 22-3386 inclusive
13050 DRAWING – Frame, Fuselage Fitting Installation 22-1 to 22-806 inclusive NM!
-13869DWG DRAWING – Frame, Fuselage Fitting Installation 22-807 to 22-2599 inclusive, 22-2602 to 22-3217 65.97
inclusive, and 22-3219 to 22-3386 inclusive
14609 DRAWING – Fuselage Frame, Complete 22-3218, 22-3387 to 22-7642 inclusive NM!
14610 DRAWING – Frame, Fuselage Fitting Installation 22-3218, 22-3387 to 22-7642 inclusive NM!
15116 DRAWING – Frame Assembly, Fuselage 22-8000 and up NM!
15110 DRAWING – Fuselage Fittings Installation 22-8000 and up NM!
-1 12027-00 ANGLE – Sliding window, rear, LH 1 22-1 to 22-806 inclusive NM!
-2 12766-00 BRACKET ASSEMBLY – Armrest 2 NM!
-3 13829-00 CHANNEL – Baggage compartment, door, frame, front 1 22-807 to 22-7642 inclusive NM!
-4 13831-00 CHANNEL – Baggage compartment, door, bottom 1 22-807 to 22-7642 inclusive NM!
-5 U11856-000 CHANNEL – Rear window, RH 1 22-1 to 22-3217 inclusive and 22-3219 to 22-3386 282.89
inclusive
-14617-000 CHANNEL ASSEMBLY – Right rear window 1 22-3218, 22-3387 to 22-7642 inclusive 220.33
-6 U11546-000 CHANNEL – Sliding window, bottom, LH 1 22-1 to 22-806 inclusive 88.55
-7 12329-00 CHANNEL – Sliding window, top, LH 1 22-1 to 22-806 inclusive NM!
-8 11548-03 CHANNEL – Windshield, LH 1 22-1 to 22-806 inclusive NM!
-9 11543-03 CHANNEL – Windshield, RH 1 NM!
-10 U11536-000 CHANNEL – Windshield, top 1 22-1 to 22-7642 inclusive 238.35
15130-00 CHANNEL – Windshield, top 1 22-8000 and up NM!
-11 U750-285 CHANNEL – “U”, steel (3/8 x .020) 6’ pieces 22-1 to 22-7642 inclusive 11.67
-12 X141472 CHANNEL – “U”, steel (1/4 x .016) 6’ pieces 22-8000 and up 8.26
U750-285 CHANNEL – “U”, steel (3/8 x .020) 6’ pieces 11.67
-13 13807-00 CHANNEL – Fuselage window, top, rear, LH 1 22-807 and up NM!
-14 13809-00 CHANNEL – Fuselage window, bottom, LH 1 22-807 and up NM!
-15 13859-00 CHANNEL – Fuselage window (also left windshield channel), LH 1 22-807 and up NM!
-16 -13858-000 CHANNEL – Fuselage window, bottom, front, LH 1 22-807 and up 44.9
-17 13930-00 CHANNEL – Fuselage window, rear, LH 1 22-807 and up NM!
-18 13861-00 CHANNEL – Fuselage window, top, front, LH 1 22-807 and up NM!
-19 -13863-000 CHANNEL – Fuselage window, front, LH 1 22-807 and up 60.9
-20 11871-00 ANGLE – Bottom 1 22-1 to 22-7642 inclusive NM!
-21 11868-00 CHANNEL – Side, front, lower 1 22-1 to 22-7642 inclusive NM!
-22 11869-00 CHANNEL – Side, front, center 1 22-1 to 22-806 inclusive NM!
-23 11870-00 CHANNEL – Side, front, upper 1 22-1 to 22-806 inclusive NM!
-24 13096-00 CHANNEL – Top, front 1 22-1 to 22-7642 inclusive NM!
22762-96 CHANNEL – Top, front 1 22-8000 and up NM!
-25 11867-02 ANGLE – Side, rear, upper 1 22-1 to 22-806 inclusive NM!
-26 11867-00 ANGLE – Side, rear, lower 2 22-1 to 22-806 inclusive, 22-8000 and up NM!
-27 U22412-000 TAIL POST ASSEMBLY 1 176.36
-28 12205-07 CHANNEL – Top, rear 1 22-1 to 22-806 inclusive NM!
-29 13857-00 CHANNEL – Side, rear 1 22-807 to 22-3217 inclusive, and 22-3219 to 22-3386 NM!
inclusive
13857-02 CHANNEL – Side, rear, bottom door frame, LH 1 22-3218, 22-3387 to 22-7642 inclusive NM!

21
