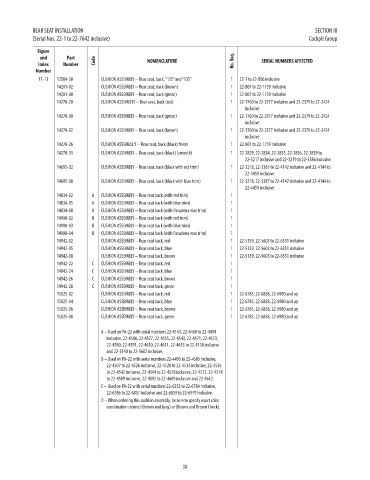

REAR SEAT INSTALLATION SECTION III
(Serial Nos. 22-1 to 22-7642 inclusive) Cockpit Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
11-13 12584-30 CUSHION ASSEMBLY – Rear seat, back, “125” and “135” 1 22-1 to 22-806 inclusive NM!
14201-02 CUSHION ASSEMBLY – Rear seat, back (brown) 1 22-807 to 22-1759 inclusive NM!
14201-00 CUSHION ASSEMBLY – Rear seat, back (green) 1 22-807 to 22-1759 inclusive NM!
14270-20 CUSHION ASSEMI3LY – Rear seat, back (red) 1 22-1760 to 22-2377 inclusive and 22-2379 to 22-2424 NM!
inclusive
14270-00 CUSHION ASSEMBLY – Rear seat, back (green) 1 22-1760 to 22-2377 inclusive and 22-2379 to 22-2424 NM!
inclusive
14270-02 CUSHION ASSEMBLY – Rear seat, back (brown) 1 22-1760 to 22-2377 inclusive and 22-2379 to 22-2424 NM!
inclusive
14270-26 CUSHION ASSEMI3L Y – Rear seat, back (black) frieze 1 22-807 to 22-1759 inclusive NM!
14270-33 CUSHION ASSEMBLY – Rear seat, back (black) (smooth) 1 22-2829, 22-2834, 22-2835, 22-2836, 22-2839 to NM!
22-3217 inclusive and 22-3219 to 22-3386 inclusive
14695-02 CUSHION ASSEMBLY – Rear seat, back (black with red trim) 1 22-3218, 22-3387 to 22-4142 inclusive and 22-4144 to NM!
22-4459 inclusive
14695-08 CUSHION ASSEMBLY – Rear seat, back (black with blue trim) 1 22-3218, 22-3387 to 22-4142 inclusive and 22-4144 to NM!
22-4459 inclusive
14834-02 A CUSHION ASSEMBLY – Rear seat back (with red trim) 1 NM!
14834-05 A CUSHION ASSEMBLY – Rear seat back (with blue trim) 1 NM!
14834-08 A CUSHION ASSEMBLY – Rear seat back (with Pasadena rose trim) 1 NM!
14900-02 B CUSHION ASSEMBLY – Rear seat back (with red trim) 1 NM!
14900-03 B CUSHION ASSEMBLY – Rear seat back (with blue trim) 1 NM!
14900-04 B CUSHION ASSEMBLY – Rear seat back (with Pasadena rose trim) 1 NM!
14942-02 CUSHION ASSEMBLY – Rear seat back, red 1 22-5139, 22-5603 to 22-6351 inclusive NM!
14942-05 CUSHION ASSEMBLY – Rear seat back, blue 1 22-5139, 22-5603 to 22-6351 inclusive NM!
14942-08 CUSHION ASSEMBLY – Rear seat back, brown 1 22-5139, 22-5603 to 22-6351 inclusive NM!
14942-22 C CUSHION ASSEMBLY – Rear seat back, red 1 NM!
14942-24 C CUSHION ASSEMBLY – Rear seat back, blue 1 NM!
14942-26 C CUSHION ASSEMBLY – Rear seat back, brown 1 NM!
14942-28 C CUSHION ASSEMBLY – Rear seat back, green 1 NM!
15025-02 CUSHION ASSEMBLY – Rear seat back, red 1 22-6785, 22-6858, 22-6980 and up NM!
15025-04 CUSHION ASSEMBLY – Rear seat back, blue 1 22-6785, 22-6858, 22-6980 and up NM!
15025-06 CUSHION ASSEMBLY – Rear seat back, brown 1 22-6785, 22-6858, 22-6980 and up NM!
15025-08 CUSHION ASSEMBLY – Rear seat back, green 1 22-6785, 22-6858, 22-6980 and up NM!

A – Used on PA-22 with serial numbers 22-4143, 22-4460 to 22-4494
inclusive, 22-4506, 22-4527, 22-4535, 22-4543, 22-4571, 22-4573,
22-4590, 22-4591, 22-4610, 22-4611, 22-4613 to 22-5138 inclusive
and 22-5140 to 22-5602 inclusive.
B – Used on PA-22 with serial numbers 22-4495 to 22-4505 inclusive,
22-4507 to 22-4526 inclusive, 22-4528 to 22-4534 inclusive, 22-4536
to 22-4542 inclusive, 22-4544 to 22-4570 inclusive, 22-4572, 22-4574
to 22-4589 inclusive, 22-4592 to 22-4609 inclusive and 22-4612.
C – Used on PA-22 with serial numbers 22-6352 to 22-6784 inclusive,
22-6786 to 22-6857 inclusive and 22-6859 to 22-6979 inclusive.
D – When ordering this cushion assembly, be sure to specify exact color
combination desired (Brown and Gray) or (Brown and Brown Check).

30
