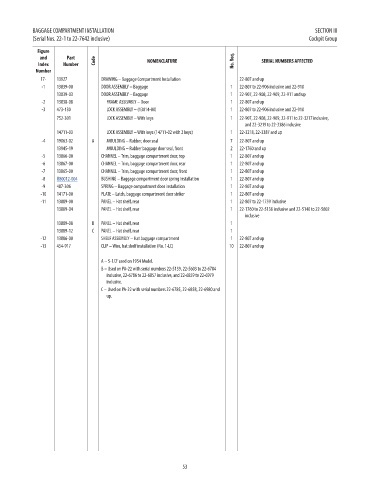

BAGGAGE COMPARTMENT INSTALLATION SECTION III
(Serial Nos. 22-1 to 22-7642 inclusive) Cockpit Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
17- 13927 DRAWING – Baggage Compartment Installation 22-807 and up NM!
-1 13839-00 DOOR ASSEMBLY – Baggage 1 22-807 to 22-906 inclusive and 22-910 NM!
13839-03 DOOR ASSEMBLY – Baggage 1 22-907, 22-908, 22-909, 22-911 and up NM!
-2 13838-08 FRAME ASSEMBLY – Door 1 22-807 and up NM!
-3 473-130 LOCK ASSEMBLY – (13014-00) 1 22-807 to 22-906 inclusive and 22-910 NM!
752-301 LOCK ASSEMBLY – With keys 1 22-907, 22-908, 22-909, 22-911 to 22-3217 inclusive, NM!
and 22-3219 to 22-3386 inclusive
14711-03 LOCK ASSEMBLY – With keys (14711-02 with 2 keys) 1 22-3218, 22-3387 and up NM!
-4 19063-02 A MOULDING – Rubber, door seal 7 22-807 and up NM!
13945-19 MOULDING – Rubber baggage door seal, front 2 22-1760 and up NM!
-5 13866-00 CHANNEL – Trim, baggage compartment door, top 1 22-807 and up NM!
-6 13867-00 CHANNEL – Trim, baggage compartment door, rear 1 22-807 and up NM!
-7 13865-00 CHANNEL – Trim, baggage compartment door, front 1 22-807 and up NM!
-8 U80012-004 BUSHING – Baggage compartment door spring installation 1 22-807 and up 7.45
-9 487-306 SPRING – Baggage compartment door installation 1 22-807 and up NM!
-10 14171-00 PLATE – Latch, baggage compartment door striker 1 22-807 and up NM!
-11 13889-00 PANEL – Hat shelf, rear 1 22-807 to 22-1759 inclusive NM!
13889-04 PANEL – Hat shelf, rear 1 22-1760 to 22-5138 inclusive and 22-5140 to 22-5602 NM!
inclusive
13889-08 B PANEL – Hat shelf, rear 1 NM!
13889-12 C PANEL – Hat shelf, rear 1 NM!
-12 13886-00 SHELF ASSEMBLY – Hat baggage compartment 1 22-807 and up NM!
-13 454-917 CLIP – Wire, hat shelf installation (No. 1-LC) 10 22-807 and up NM!

A – 5-1/2’ used on 1954 Model.
B – Used on PA-22 with serial numbers 22-5139, 22-5603 to 22-6784
inclusive, 22-6786 to 22-6857 inclusive, and 22-6859 to 22-6979
inclusive.
C – Used on PA-22 with serial numbers 22-6785, 22-6858, 22-6980 and
up.

53
