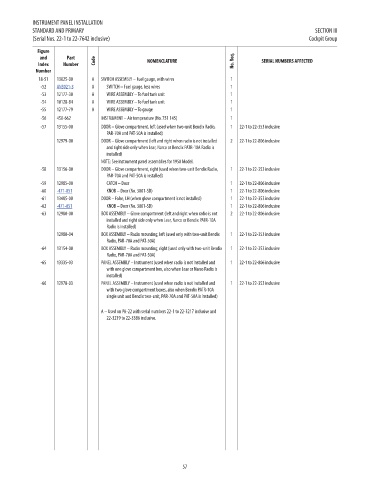

Page 69 - Piper PA-22 Tri-Pacer Interactive Digital Parts Catalog

INSTRUMENT PANEL INSTALLATION
STANDARD AND PRIMARY SECTION III
(Serial Nos. 22-1 to 22-7642 inclusive) Cockpit Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
18-51 13025-00 A SWITCH ASSEMBLY – Fuel gauge, with wires 1 NM!
-52 AN3021-3 A SWITCH – Fuel gauge, less wires 1 29.75
-53 12177-30 A WIRE ASSEMBLY – To fuel tank unit 1 NM!
-54 10128-84 A WIRE ASSEMBLY – To fuel tank unit 1 NM!
-55 12177-79 A WIRE ASSEMBLY – To gauge 1 NM!
-56 450-662 INSTRUMENT – Air temperature (No. 751 145) 1 NM!
-57 13155-00 DOOR – Glove compartment, left (used when two-unit Bendix Radio, 1 22-1 to 22-353 inclusive NM!
PAR-70A and PAT-50A is installed)
12979-00 DOOR – Glove compartment (left and right when radio is not installed 2 22-1 to 22-806 inclusive NM!
and right side only when Lear, Narco or Bendix PATR-10A Radio is
installed)
NOTE: See instrument panel assemblies for 1950 Model.
-58 13156-00 DOOR – Glove compartment, right (used when two-unit Bendix Radio, 1 22-1 to 22-353 inclusive NM!
PAR-70A and PAT-50A is installed)
-59 12985-00 CATCH – Door 1 22-1 to 22-806 inclusive NM!
-60 -471-051 KNOB – Door (No. 3001-SD) 1 22-1 to 22-806 inclusive 2.19
-61 13485-00 DOOR – False, LH (when glove compartment is not installed) 1 22-1 to 22-353 inclusive NM!
-62 -471-051 KNOB – Door (No. 3001-SD) 1 22-1 to 22-806 inclusive 2.19
-63 12980-00 BOX ASSEMBLY – Glove compartment (left and right when radio is not 2 22-1 to 22-806 inclusive NM!
installed and right side only when Lear, Narco or Bendix PATR-10A
Radio is installed)
12980-04 BOX ASSEMBLY – Radio mounting, left (used only with two-unit Bendix 1 22-1 to 22-353 inclusive NM!
Radio, PAR-70A and PAT-50A)
-64 13154-00 BOX ASSEMBLY – Radio mounting, right (used only with two-unit Bendix 1 22-1 to 22-353 inclusive NM!
Radio, PAR-70A and PAT-50A)
-65 13335-03 PANEL ASSEMBLY – Instrument (used when radio is not installed and 1 22-1 to 22-806 inclusive NM!
with one glove compartment box, also when Lear or Narco Radio is
installed)
-66 12978-03 PANEL ASSEMBLY – Instrument (used when radio is not installed and 1 22-1 to 22-353 inclusive NM!
with two glove compartment boxes, also when Bendix PATR-10A
single unit and Bendix two-unit, PAR-70A and PAT-50A is installed)

A – Used on PA-22 with serial numbers 22-1 to 22-3217 inclusive and
22-3219 to 22-3386 inclusive.

57
