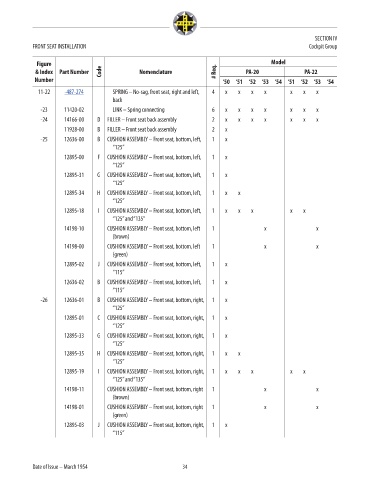

Page 62 - Piper PA-20 Interactive Digital Parts Catalog

SECTION IV
FRONT SEAT INSTALLATION Cockpit Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
11-22 -487-274 SPRING – No-sag, front seat, right and left, 4 x x x x x x x 67.76
back
-23 11420-02 LINK – Spring connecting 6 x x x x x x x NM!
-24 14166-00 D FILLER – Front seat back assembly 2 x x x x x x x NM!
11928-00 B FILLER – Front seat back assembly 2 x NM!
-25 12636-00 B CUSHION ASSEMBLY – Front seat, bottom, left, 1 x NM!
“125”
12895-00 F CUSHION ASSEMBLY – Front seat, bottom, left, 1 x NM!
“125”
12895-31 G CUSHION ASSEMBLY – Front seat, bottom, left, 1 x NM!
“125”
12895-34 H CUSHION ASSEMBLY – Front seat, bottom, left, 1 x x NM!
“125”

12895-18 I CUSHION ASSEMBLY – Front seat, bottom, left, 1 x x x x x NM!
“125” and “135”
14198-10 CUSHION ASSEMBLY – Front seat, bottom, left 1 x x NM!
(brown)
14198-00 CUSHION ASSEMBLY – Front seat, bottom, left 1 x x NM!
(green)
12895-02 J CUSHION ASSEMBLY – Front seat, bottom, left, 1 x NM!
“115”
12636-02 B CUSHION ASSEMBLY – Front seat, bottom, left, 1 x NM!
“115”
-26 12636-01 B CUSHION ASSEMBLY – Front seat, bottom, right, 1 x NM!
“125”
12895-01 C CUSHION ASSEMBLY – Front seat, bottom, right, 1 x NM!
“125”
12895-33 G CUSHION ASSEMBLY – Front seat, bottom, right, 1 x NM!
“125”
12895-35 H CUSHION ASSEMBLY – Front seat, bottom, right, 1 x x NM!
“125”
12895-19 I CUSHION ASSEMBLY – Front seat, bottom, right, 1 x x x x x NM!
“125” and “135”
14198-11 CUSHION ASSEMBLY – Front seat, bottom, right 1 x x NM!
(brown)
14198-01 CUSHION ASSEMBLY – Front seat, bottom, right 1 x x NM!
(green)
12895-03 J CUSHION ASSEMBLY – Front seat, bottom, right, 1 x NM!
“115”

Date of Issue – March 1954 34
