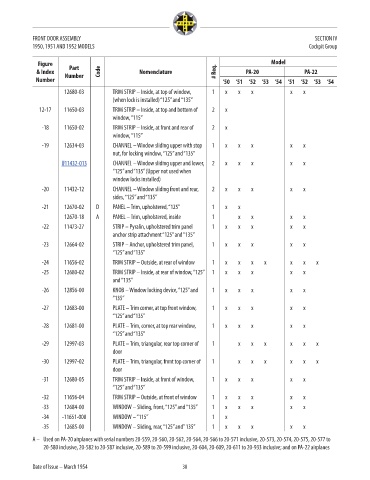

FRONT DOOR ASSEMBLY SECTION IV
1950, 1951 AND 1952 MODELS Cockpit Group

Figure Model
& Index Part Code Nomenclature # Req. PA-20 PA-22
Number Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
12680-03 TRIM STRIP – Inside, at top of window, 1 x x x x x NM!
(when lock is installed) “125” and “135”
12-17 11650-03 TRIM STRIP – Inside, at top and bottom of 2 x NM!
window, “115”

-18 11650-02 TRIM STRIP – Inside, at front and rear of 2 x NM!
window, “115”
-19 12634-03 CHANNEL – Window sliding upper with stop 1 x x x x x NM!
nut, for locking window, “125” and “135”
U11432-013 CHANNEL – Window sliding upper and lower, 2 x x x x x 51.22
“125” and “135” (Upper not used when
window locks installed)
-20 11432-12 CHANNEL – Window sliding front and rear, 2 x x x x x NM!
sides, “125” and “135”
-21 12670-02 D PANEL – Trim, upholstered, “125” 1 x x NM!
12670-18 A PANEL – Trim, upholstered, inside 1 x x x x NM!
-22 11473-27 STRIP – Pyralin, upholstered trim panel 1 x x x x x NM!
anchor strip attachment “125” and “135”
-23 12664-02 STRIP – Anchor, upholstered trim panel, 1 x x x x x NM!
“125” and “135”
-24 11656-02 TRIM STRIP – Outside, at rear of window 1 x x x x x x x NM!
-25 12680-02 TRIM STRIP – Inside, at rear of window, “125” 1 x x x x x NM!
and “135”
-26 12856-00 KNOB – Window locking device, “125” and 1 x x x x x NM!
“135”
-27 12683-00 PLATE – Trim corner, at top front window, 1 x x x x x NM!
“125” and “135”
-28 12681-00 PLATE – Trim, corner, at top rear window, 1 x x x x x NM!
“125” and “135”
-29 12997-03 PLATE – Trim, triangular, rear top corner of 1 x x x x x x NM!
door
-30 12997-02 PLATE – Trim, triangular, front top corner of 1 x x x x x x NM!
door
-31 12680-05 TRIM STRIP – Inside, at front of window, 1 x x x x x NM!
“125” and “135”
-32 11656-04 TRIM STRIP – Outside, at front of window 1 x x x x x NM!
-33 12684-00 WINDOW – Sliding, front, “125” and “135” 1 x x x x x NM!
-34 -11651-000 WINDOW – “115” 1 x NM!
-35 12685-00 WINDOW – Sliding, rear, “125” and” 135” 1 x x x x x NM!

A – Used on PA-20 airplanes with serial numbers 20-559, 20-560, 20-562, 20-564, 20-566 to 20-571 inclusive, 20-573, 20-574, 20-575, 20-577 to
20-580 inclusive, 20-582 to 20-587 inclusive, 20-589 to 20-599 inclusive, 20-604, 20-609, 20-611 to 20-933 inclusive; and on PA-22 airplanes

Date of Issue – March 1954 38
