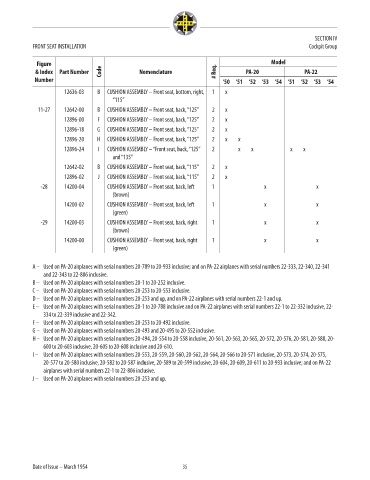

SECTION IV
FRONT SEAT INSTALLATION Cockpit Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
12636-03 B CUSHION ASSEMBLY – Front seat, bottom, right, 1 x NM!
“115”
11-27 12642-00 B CUSHION ASSEMBLY – Front seat, back, “125” 2 x NM!
12896-00 F CUSHION ASSEMBLY – Front seat, back, “125” 2 x NM!
12896-18 G CUSHION ASSEMBLY – Front seat, back, “125” 2 x NM!
12896-20 H CUSHION ASSEMBLY – Front seat, back, “125” 2 x x NM!
12896-24 I CUSHION ASSEMBLY – “Front seat, back, “125” 2 x x x x NM!
and “135”
12642-02 B CUSHION ASSEMBLY – Front seat, back, “115” 2 x NM!
12896-02 J CUSHION ASSEMBLY – Front seat, back, “115” 2 x NM!
-28 14200-04 CUSHION ASSEMBLY – Front seat, back, left 1 x x NM!
(brown)
14200-02 CUSHION ASSEMBLY – Front seat, back, left 1 x x NM!
(green)
-29 14200-03 CUSHION ASSEMBLY – Front seat, back, right 1 x x NM!
(brown)
14200-00 CUSHION ASSEMBLY – Front seat, back, right 1 x x NM!
(green)

A – Used on PA-20 airplanes with serial numbers 20-789 to 20-933 inclusive; and on PA-22 airplanes with serial numbers 22-333, 22-340, 22-341
and 22-343 to 22-806 inclusive.
B – Used on PA-20 airplanes with serial numbers 20-1 to 20-252 inclusive.
C – Used on PA-20 airplanes with serial numbers 20-253 to 20-553 inclusive.
D – Used on PA-20 airplanes with serial numbers 20-253 and up, and on PA-22 airplanes with serial numbers 22-1 and up.
E – Used on PA-20 airplanes with serial numbers 20-1 to 20-788 inclusive and on PA-22 airplanes with serial numbers 22-1 to 22-332 inclusive, 22-
334 to 22-339 inclusive and 22-342.
F – Used on PA-20 airplanes with serial numbers 20-253 to 20-492 inclusive.
G – Used on PA-20 airplanes with serial numbers 20-493 and 20-495 to 20-552 inclusive.
H – Used on PA-20 airplanes with serial numbers 20-494, 20-554 to 20-558 inclusive, 20-561, 20-563, 20-565, 20-572, 20-576, 20-581, 20-588, 20-
600 to 20-603 inclusive, 20-605 to 20-608 inclusive and 20-610.
I – Used on PA-20 airplanes with serial numbers 20-553, 20-559, 20-560, 20-562, 20-564, 20-566 to 20-571 inclusive, 20-573, 20-574, 20-575,
20-577 to 20-580 inclusive, 20-582 to 20-587 inclusive, 20-589 to 20-599 inclusive, 20-604, 20-609, 20-611 to 20-933 inclusive; and on PA-22
airplanes with serial numbers 22-1 to 22-806 inclusive.
J – Used on PA-20 airplanes with serial numbers 20-253 and up.

Date of Issue – March 1954 35
