P. 58
SECTION IV
REAR SEAT INSTALLATION Cockpit Group
Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
10-10 AA55487-2 A CLIP – Rear safety belt tube attachment pin 2 x x x x 0.58
(No. 62) (AN415-2)
-11 MS20392-3C55 A PIN – Rear safety belt tube attachment 2 x x x x 1.08
-12 13129-03 STRAP ASSEMBLY – Shoulder harness, rear seat 4 x x x x x x NM!
-13 12584-00 C CUSHION ASSEMBLY – Rear seat, back, “125” 1 x NM!
12584-23 D CUSHION ASSEMBLY – Rear seat, back, “125” 1 x NM!
12584-25 E CUSHION ASSEMBLY – Rear seat, back, “125” 1 x x NM!
12584-30 F CUSHION ASSEMBLY – Rear seat, back, “125” 1 x x x x x NM!
and “135”

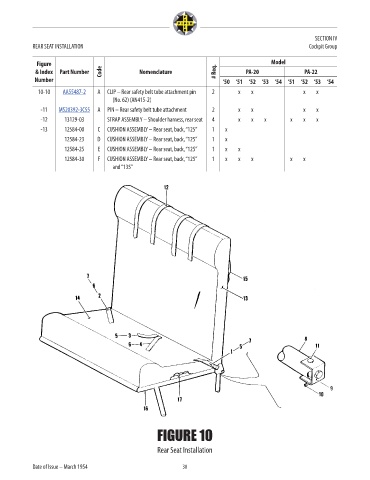

FIGURE 10
Rear Seat Installation
Date of Issue – March 1954 30
