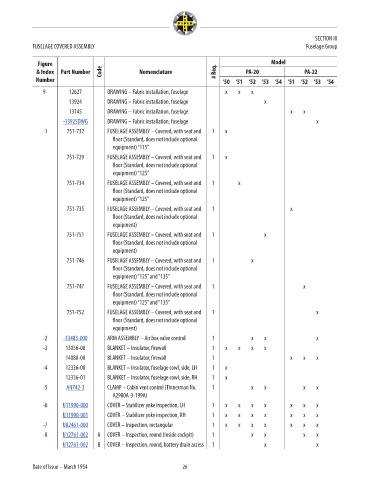

SECTION III
FUSELAGE COVERED ASSEMBLY Fuselage Group
Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
9- 12627 DRAWING – Fabric installation, fuselage x x x NM!
13924 DRAWING – Fabric installation, fuselage x NM!
13145 DRAWING – Fabric installation, fuselage x x NM!
-13925DWG DRAWING – Fabric installation, fuselage x 65.97
-1 751-732 FUSELAGE ASSEMBLY – Covered, with seat and 1 x NM!
floor (Standard, does not include optional
equipment) “115”
751-729 FUSELAGE ASSEMBLY – Covered, with seat and 1 x NM!
floor (Standard, does not include optional
equipment) “125”
751-734 FUSELAGE ASSEMBLY – Covered, with seat and 1 x NM!
floor (Standard, does not include optional
equipment) “125”
751-735 FUSELAGE ASSEMBLY – Covered, with seat and 1 x NM!
floor (Standard, does not include optional
equipment)
751-751 FUSELAGE ASSEMBLY – Covered, with seat and 1 x NM!
floor (Standard, does not include optional
equipment)
751-746 FUSELAGE ASSEMBLY – Covered, with seat and 1 x NM!
floor (Standard, does not include optional
equipment) “125” and “135”
751-747 FUSELAGE ASSEMBLY – Covered, with seat and 1 x NM!
floor (Standard, does not include optional
equipment) “125” and “135”
751-752 FUSELAGE ASSEMBLY – Covered, with seat and 1 x NM!
floor (Standard, does not include optional
equipment)
-2 -13483-000 ARM ASSEMBLY – Air box valve control 1 x x x 75.53
-3 13056-00 BLANKET – Insulator, firewall 1 x x x x NM!
14080-00 BLANKET – Insulator, firewall 1 x x x NM!
-4 12336-00 BLANKET – Insulator, fuselage cowl, side, LH 1 x NM!
12336-01 BLANKET – Insulator, fuselage cowl, side, RH 1 x NM!
-5 AN742-3 CLAMP – Cabin vent control (Tinnerman No. 1 x x x x 0.72
A2980A-3-199A)
-6 U11990-000 COVER – Stabilizer yoke inspection, LH 1 x x x x x x x 36.23
U11990-001 COVER – Stabilizer yoke inspection, RH 1 x x x x x x x 36.23
-7 U82461-000 COVER – Inspection, rectangular 1 x x x x x x x 18.02
-8 U12761-002 A COVER – Inspection, round (Inside cockpit) 1 x x x x 46.86
U12761-002 B COVER – Inspection, round, battery drain access 1 x x 46.86
Date of Issue – March 1954 26
