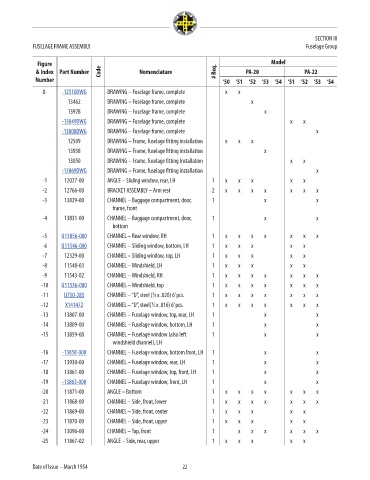

Page 50 - Piper PA-20 Interactive Digital Parts Catalog

SECTION III
FUSELAGE FRAME ASSEMBLY Fuselage Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
8- -12510DWG DRAWING – Fuselage frame, complete x x 65.97
13462 DRAWING – Fuselage frame, complete x NM!
13928 DRAWING – Fuselage frame, complete x NM!
-13049DWG DRAWING – Fuselage frame, complete x x 65.97
-13808DWG DRAWING – Fuselage frame, complete x 65.97
12509 DRAWING – Frame, fuselage fitting installation x x x NM!
13938 DRAWING – Frame, fuselage fitting installation x NM!
13050 DRAWING – Frame, fuselage fitting Installation x x NM!
-13869DWG DRAWING – Frame, fuselage fitting installation x 65.97
-1 12027-00 ANGLE – Sliding window, rear, LH 1 x x x x x NM!
-2 12766-00 BRACKET ASSEMBLY – Arm rest 2 x x x x x x x NM!
-3 13829-00 CHANNEL – Baggage compartment, door, 1 x x NM!
frame, front
-4 13831-00 CHANNEL – Baggage compartment, door, 1 x x NM!
bottom
-5 U11856-000 CHANNEL – Rear window, RH 1 x x x x x x x 282.89
-6 U11546-000 CHANNEL – Sliding window, bottom, LH 1 x x x x x 88.55
-7 12329-00 CHANNEL – Sliding window, top, LH 1 x x x x x NM!
-8 11548-03 CHANNEL – Windshield, LH 1 x x x x x NM!
-9 11543-02 CHANNEL – Windshield, RH 1 x x x x x x x NM!
-10 U11536-000 CHANNEL – Windshield, top 1 x x x x x x x 238.35
-11 U750-285 CHANNEL – “U”, steel ( ⁄8 x .020) 6’ pcs. 1 x x x x x x x 11.67
3
-12 X141472 CHANNEL – “U”, steel( ⁄4 x .016) 6’ pcs. 1 x x x x x x x 8.26
1
-13 13807-00 CHANNEL – Fuselage window, top, rear, LH 1 x x NM!
-14 13809-00 CHANNEL – Fuselage window, bottom, LH 1 x x NM!
-15 13859-00 CHANNEL – Fuselage window (also left 1 x x NM!
windshield channel), LH
-16 -13858-000 CHANNEL – Fuselage window, bottom front, LH 1 x x 44.9
-17 13930-00 CHANNEL – Fuselage window, rear, LH 1 x x NM!
-18 13861-00 CHANNEL – Fuselage window, top, front, LH 1 x x NM!
-19 -13863-000 CHANNEL – Fuselage window, front, LH 1 x x 60.9
-20 11871-00 ANGLE – Bottom 1 x x x x x x x NM!
-21 11868-00 CHANNEL – Side, front, lower 1 x x x x x x x NM!
-22 11869-00 CHANNEL – Side, front, center 1 x x x x x NM!
-23 11870-00 CHANNEL – Side, front, upper 1 x x x x x NM!
-24 13096-00 CHANNEL – Top, front 1 x x x x x x NM!
-25 11867-02 ANGLE – Side, rear, upper 1 x x x x x NM!

Date of Issue – March 1954 22
