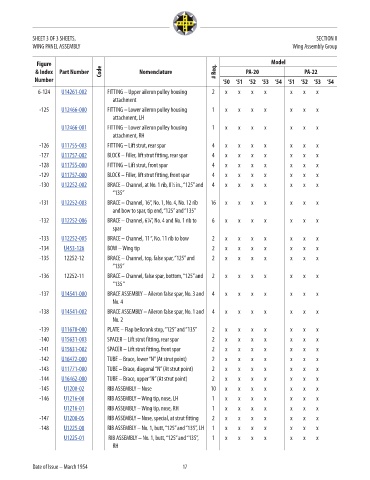

SHEET 3 OF 3 SHEETS, SECTION II
WING PANEL ASSEMBLY Wing Assembly Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
6-124 U14261-002 FITTING – Upper aileron pulley housing 2 x x x x x x x 79.89
attachment
-125 U12466-000 FITTING – Lower aileron pulley housing 1 x x x x x x x 85.07
attachment, LH

U12466-001 FITTING – Lower aileron pulley housing 1 x x x x x x x 55.65
attachment, RH
-126 U11755-003 FITTING – Lift strut, rear spar 4 x x x x x x x 51.12
-127 U11757-002 BLOCK – Filler, lift strut fitting, rear spar 4 x x x x x x x 39.69
-128 U11755-000 FITTING – Lift strut, front spar 4 x x x x x x x 60.6
-129 U11757-000 BLOCK – Filler, lift strut fitting, front spar 4 x x x x x x x 56.52
-130 U12252-002 BRACE – Channel, at No. 1 rib, 8 ⁄2 in., “125” and 4 x x x x x x x 13
1
“135”
-131 U12252-003 BRACE – Channel, 16”, No. 1, No. 4, No. 12 rib 16 x x x x x x x 16.86
and bow to spar, tip end, “125” and “135”
-132 U12252-006 BRACE – Channel, 6 ⁄4”, No. 4 and No. 1 rib to 6 x x x x x x x 14.1
1
spar
-133 U12252-005 BRACE – Channel, 11 “, No. 11 rib to bow 2 x x x x x x x 13
-134 U453-126 BOW – Wing tip 2 x x x x x x x 46.14
-135 12252-12 BRACE – Channel, top, false spar, “125” and 2 x x x x x x x NM!
“135”
-136 12252-11 BRACE – Channel, false spar, bottom, “125” and 2 x x x x x x x NM!
“135 “
-137 U14541-000 BRACE ASSEMBLY – Aileron false spar, No. 3 and 4 x x x x x x x 57.7
No. 4
-138 U14541-002 BRACE ASSEMBLY – Aileron false spar, No. 1 and 4 x x x x x x x 94.53
No. 2
-139 U11678-000 PLATE – Flap bellcrank stop, “125” and “135” 2 x x x x x x x 21.9
-140 U15631-003 SPACER – Lift strut fitting, rear spar 2 x x x x x x x 18.15
-141 U15631-002 SPACER – Lift strut fitting, front spar 2 x x x x x x x 18.15
-142 U16472-000 TUBE – Brace, lower “N” (At strut point) 2 x x x x x x x 131.95
-143 U11771-000 TUBE – Brace, diagonal “N” (At strut point) 2 x x x x x x x 108.65
-144 U16462-000 TUBE – Brace, upper “N” (At strut point) 2 x x x x x x x 131.49
-145 U1200-02 RIB ASSEMBLY – Nose 10 x x x x x x x 29.72
-146 U1216-00 RIB ASSEMBLY – Wing tip, nose, LH 1 x x x x x x x 31.99
U1216-01 RIB ASSEMBLY – Wing tip, nose, RH 1 x x x x x x x 47.68
-147 U1200-05 RIB ASSEMBLY – Nose, special, at strut fitting 2 x x x x x x x 41.8
-148 U1225-00 RIB ASSEMBLY – No. 1, butt, “125” and “135”, LH 1 x x x x x x x 178.05

U1225-01 RIB ASSEMBLY – No. 1, butt, “125” and “135”, 1 x x x x x x x 145.49
RH

Date of Issue – March 1954 17
