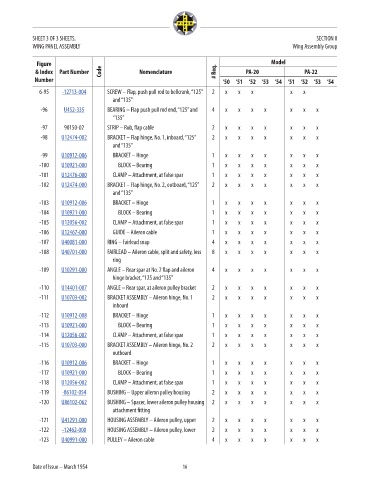

SHEET 3 OF 3 SHEETS, SECTION II
WING PANEL ASSEMBLY Wing Assembly Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
6-95 -12713-004 SCREW – Flap, push pull rod to bellcrank, “125” 2 x x x x x 2.65
and “135”
-96 U452-335 BEARING – Flap push pull rod end, “125” and 4 x x x x x x x 46.92
“135”

-97 90150-02 STRIP – Rub, flap cable 2 x x x x x x x NM!
-98 U12474-002 BRACKET – Flap hinge, No. 1, inboard, “125” 2 x x x x x x x 219.18
and “135”
-99 U10912-006 BRACKET – Hinge 1 x x x x x x x 106.33
-100 U10921-000 BLOCK – Bearing 1 x x x x x x x 24.98
-101 U12476-000 CLAMP – Attachment, at false spar 1 x x x x x x x 14.37
-102 U12474-000 BRACKET – Flap hinge, No. 2, outboard, “125” 2 x x x x x x x 342.78
and “135”
-103 U10912-006 BRACKET – Hinge 1 x x x x x x x 106.33
-104 U10921-000 BLOCK – Bearing 1 x x x x x x x 24.98
-105 U12056-002 CLAMP – Attachment, at false spar 1 x x x x x x x 21.35
-106 U12467-000 GUIDE – Aileron cable 1 x x x x x x x 96.27
-107 U40081-000 RING – Fairlead snap 4 x x x x x x x 0.49
-108 U40701-000 FAIRLEAD – Aileron cable, split and safety, less 8 x x x x x x x 1.3
ring
-109 U10291-000 ANGLE – Rear spar at No. 2 flap and aileron 4 x x x x x x x 23.85
hinge bracket, “125 and “135”
-110 U14401-007 ANGLE – Rear spar, at aileron pulley bracket 2 x x x x x x x 10.15
-111 U10703-002 BRACKET ASSEMBLY – Aileron hinge, No. 1 2 x x x x x x x 142.54
inboard
-112 U10912-008 BRACKET – Hinge 1 x x x x x x x 120.87
-113 U10921-000 BLOCK – Bearing 1 x x x x x x x 24.98
-114 U12056-002 CLAMP – Attachment, at false spar 1 x x x x x x x 21.35
-115 U10703-000 BRACKET ASSEMBLY – Aileron hinge, No. 2 2 x x x x x x x 153.8
outboard
-116 U10912-006 BRACKET – Hinge 1 x x x x x x x 106.33
-117 U10921-000 BLOCK – Bearing 1 x x x x x x x 24.98
-118 U12056-002 CLAMP – Attachment, at false spar 1 x x x x x x x 21.35
-119 -86102-054 BUSHING – Upper aileron pulley housing 2 x x x x x x x 19.24
-120 U86102-062 BUSHING – Spacer, lower aileron pulley housing 2 x x x x x x x 11.81
attachment fitting
-121 U41291-000 HOUSING ASSEMBLY – Aileron pulley, upper 2 x x x x x x x 55.91
-122 -12462-000 HOUSING ASSEMBLY – Aileron pulley, lower 2 x x x x x x x 94.57
-123 U40991-000 PULLEY – Aileron cable 4 x x x x x x x 18.31

Date of Issue – March 1954 16
