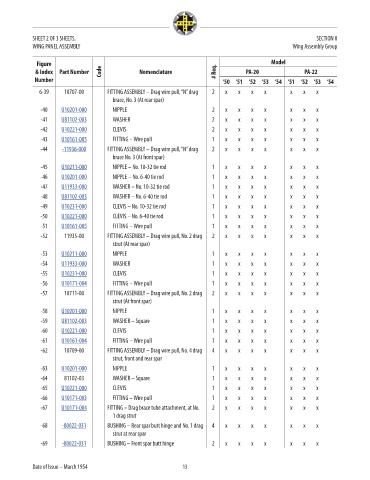

SHEET 2 OF 3 SHEETS, SECTION II
WING PANEL ASSEMBLY Wing Assembly Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
6-39 10707-00 FITTING ASSEMBLY – Drag wire pull, “N” drag 2 x x x x x x x NM!
brace, No. 3 (At rear spar)
-40 U10201-000 NIPPLE 2 x x x x x x x 11.74
-41 U81102-003 WASHER 2 x x x x x x x 4.58
-42 U10221-000 CLEVIS 2 x x x x x x x 17.72
-43 U10161-005 FITTING – Wire pull 1 x x x x x x x 15.64
-44 -11936-000 FITTING ASSEMBLY – Drag wire pull, “N” drag 2 x x x x x x x 201.58
brace No. 3 (At front spar)
-45 U10211-000 NIPPLE – No. 10-32 tie rod 1 x x x x x x x 45.26
-46 U10201-000 NIPPLE – No. 6-40 tie rod 1 x x x x x x x 11.74
-47 U11933-000 WASHER – No. 10-32 tie rod 1 x x x x x x x 25.06
-48 U81102-003 WASHER – No. 6-40 tie rod 1 x x x x x x x 4.58
-49 U10231-000 CLEVIS – No. 10-32 tie rod 1 x x x x x x x 52.51
-50 U10221-000 CLEVIS – No. 6-40 tie rod 1 x x x x x x x 17.72
-51 U10161-005 FITTING – Wire pull 1 x x x x x x x 15.64
-52 11935-00 FITTING ASSEMBLY – Drag wire pull, No. 2 drag 2 x x x x x x x NM!
strut (At rear spar)
-53 U10211-000 NIPPLE 1 x x x x x x x 45.26
-54 U11933-000 WASHER 1 x x x x x x x 25.06
-55 U10231-000 CLEVIS 1 x x x x x x x 52.51
-56 U10171-004 FITTING – Wire pull 1 x x x x x x x 7.28
-57 10711-00 FITTING ASSEMBLY – Drag wire pull, No. 2 drag 2 x x x x x x x NM!
strut (At front spar)
-58 U10201-000 NIPPLE 1 x x x x x x x 11.74
-59 U81102-003 WASHER – Square 1 x x x x x x x 4.58
-60 U10221-000 CLEVIS 1 x x x x x x x 17.72
-61 U10161-004 FITTING – Wire pull 1 x x x x x x x 15.64
-62 10709-00 FITTING ASSEMBLY – Drag wire pull, No. 4 drag 4 x x x x x x x NM!
strut, front and rear spar
-63 U10201-000 NIPPLE 1 x x x x x x x 11.74
-64 81102-03 WASHER – Square 1 x x x x x x x NM!
-65 U10221-000 CLEVIS 1 x x x x x x x 17.72
-66 U10171-003 FITTING – Wire pull 1 x x x x x x x 7.28
-67 U10171-004 FITTING – Drag brace tube attachment, at No. 2 x x x x x x x 7.28
1 drag strut
-68 -80022-031 BUSHING – Rear spar butt hinge and No. 1 drag 4 x x x x x x x 11.84
strut at rear spar
-69 -80022-031 BUSHING – Front spar butt hinge 2 x x x x x x x 11.84

Date of Issue – March 1954 13
