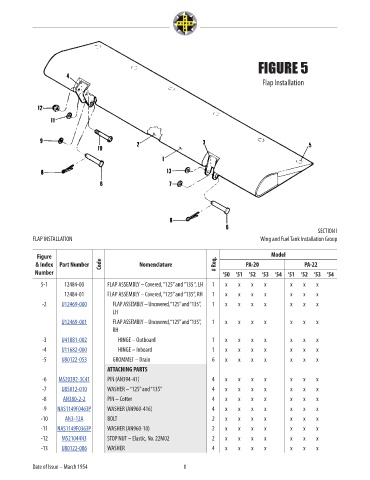

FIGURE 5

Flap Installation

SECTION I
FLAP INSTALLATION Wing and Fuel Tank Installation Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price

5-1 12484-00 FLAP ASSEMBLY – Covered, “125” and “135 “, LH 1 x x x x x x x NM!
12484-01 FLAP ASSEMBLY – Covered, “125” and “135”, RH 1 x x x x x x x NM!
-2 U12469-000 FLAP ASSEMBLY – Uncovered, “125” and “135”, 1 x x x x x x x 1384.48
LH
U12469-001 FLAP ASSEMBLY – Uncovered, “125” and “135”, 1 x x x x x x x 1384.48
RH
-3 U41881-002 HINGE – Outboard 1 x x x x x x x 111.53
-4 U11682-000 HINGE – Inboard 1 x x x x x x x 244.8
-5 U80122-053 GROMMET – Drain 6 x x x x x x x 4.09
ATTACHING PARTS x
-6 MS20392-3C41 PIN (AN394-41) 4 x x x x x x x 1.6
-7 U85012-010 WASHER – “125” and “135” 4 x x x x x x x 5.64
-8 AN380-2-2 PIN – Cotter 4 x x x x x x x 0.04

-9 NAS1149F0463P WASHER (AN960-416) 4 x x x x x x x 0.06
-10 AN3-12A BOLT 2 x x x x x x x 0.16
-11 NAS1149F0363P WASHER (AN960-10) 2 x x x x x x x 0.04
-12 MS21044N3 STOP NUT – Elastic, No. 22M02 2 x x x x x x x 0.24
-13 U80122-086 WASHER 4 x x x x x x x 2.46

Date of Issue – March 1954 8
