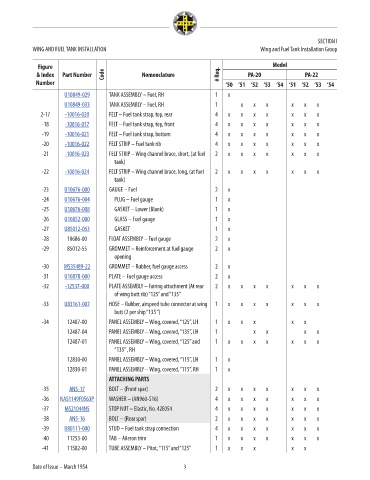

SECTION I
WING AND FUEL TANK INSTALLATION Wing and Fuel Tank Installation Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price

U10849-029 TANK ASSEMBLY – Fuel, RH 1 x 2105.1
U10849-033 TANK ASSEMBLY – Fuel, RH 1 x x x x x x 1953.38
2-17 -10016-020 FELT – Fuel tank strap, top, rear 4 x x x x x x x 17.01
-18 -10016-017 FELT – Fuel tank strap, top, front 4 x x x x x x x 6.7
-19 -10016-021 FELT – Fuel tank strap, bottom 4 x x x x x x x 8.35
-20 -10016-022 FELT STRIP – Fuel tank rib 4 x x x x x x x 19.19
-21 -10016-023 FELT STRIP – Wing channel brace, short, (at fuel 2 x x x x x x x 9.9
tank)
-22 -10016-024 FELT STRIP – Wing channel brace, long, (at fuel 2 x x x x x x x 20.13
tank)
-23 U10676-000 GAUGE – Fuel 2 x 227.83
-24 U10676-004 PLUG – Fuel gauge 1 x 29.25
-25 U10676-008 GASKET – Lower (Blank) 1 x 3.8
-26 U10852-000 GLASS – Fuel gauge 1 x 23.21
-27 U85012-053 GASKET 1 x 3.28
-28 10686-00 FLOAT ASSEMBLY – Fuel gauge 2 x NM!
-29 85012-55 GROMMET – Reinforcement at fuel gauge 2 x NM!
opening
-30 MS35489-22 GROMMET – Rubber, fuel gauge access 2 x 2.34
-31 U10878-000 PLATE – Fuel gauge access 2 x 19.08
-32 -12537-000 PLATE ASSEMBLY – Fairing attachment (At rear 2 x x x x x x x 130.35
of wing butt rib) “125” and “135”
-33 U83161-002 HOSE – Rubber, airspeed tube connector at wing 1 x x x x x x x 5.91
butt (2 per ship “135 “)
-34 12487-00 PANEL ASSEMBLY – Wing, covered, “125”, LH 1 x x x x x NM!
12487-04 PANEL ASSEMBLY – Wing, covered, “135”, LH 1 x x x x NM!
12487-01 PANEL ASSEMBLY – Wing, covered, “125” and 1 x x x x x x x NM!
“135” , RH
12830-00 PANEL ASSEMBLY – Wing, covered, “115”, LH 1 x NM!
12830-01 PANEL ASSEMBLY – Wing, covered, “115”, RH 1 x NM!
ATTACHING PARTS x
-35 AN5-17 BOLT – (Front spar) 2 x x x x x x x 1.64
-36 NAS1149F0563P WASHER – (AN960-516) 4 x x x x x x x 0.08

-37 MS21044N5 STOP NUT – Elastic, No. 42E054 4 x x x x x x x 0.4
-38 AN5-16 BOLT – (Rear spar) 2 x x x x x x x 1.03
-39 U80111-000 STUD – Fuel tank strap connection 4 x x x x x x x 21.47
-40 11253-00 TAB – Aileron trim 1 x x x x x x x NM!
-41 11582-00 TUBE ASSEMBLY – Pitot, “115” and “125” 1 x x x x x NM!

Date of Issue – March 1954 3
