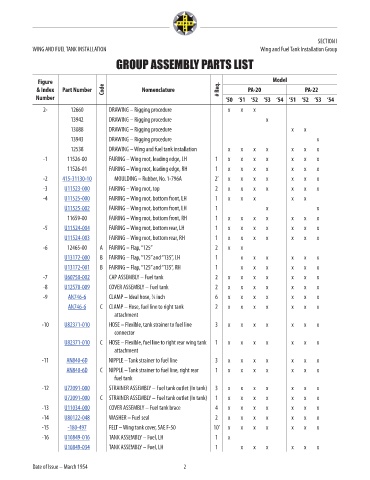

Page 30 - Piper PA-20 Interactive Digital Parts Catalog

SECTION I
WING AND FUEL TANK INSTALLATION Wing and Fuel Tank Installation Group
GROUP ASSEMBLY PARTS LIST

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price

2- 12660 DRAWING – Rigging procedure x x x NM!
13942 DRAWING – Rigging procedure x NM!
13088 DRAWING – Rigging procedure x x NM!
13943 DRAWING – Rigging procedure x NM!
12538 DRAWING – Wing and fuel tank installation x x x x x x x NM!
-1 11526-00 FAIRING – Wing root, leading edge, LH 1 x x x x x x x NM!
11526-01 FAIRING – Wing root, leading edge, RH 1 x x x x x x x NM!
-2 415-31130-10 MOULDING – Rubber, No. 1-796A 2’ x x x x x x x 38.04
-3 U11523-000 FAIRING – Wing root, top 2 x x x x x x x 80.72
-4 U11525-000 FAIRING – Wing root, bottom front, LH 1 x x x x x 71.83
U11525-002 FAIRING – Wing root, bottom front, LH 1 x x 71.83
11659-00 FAIRING – Wing root, bottom front, RH 1 x x x x x x x NM!
-5 U11524-004 FAIRING – Wing root, bottom rear, LH 1 x x x x x x x 75.53
U11524-003 FAIRING – Wing root, bottom rear, RH 1 x x x x x x x 75.53
-6 12465-00 A FAIRING – Flap, “125” 2 x x NM!
U13172-000 B FAIRING – Flap, “125” and “135”, LH 1 x x x x x x 79.31
U13172-001 B FAIRING – Flap, “125” and “135”, RH 1 x x x x x x 79.31
-7 U60750-002 CAP ASSEMBLY – Fuel tank 2 x x x x x x x 129.32
-8 U12570-009 COVER ASSEMBLY – Fuel tank 2 x x x x x x x 331.9
-9 AN746-6 CLAMP – Ideal hose, ⁄4 inch 6 x x x x x x x 1.79
3
AN746-6 C CLAMP – Hose, fuel line to right tank 2 x x x x x x x 1.79
attachment
-10 U82371-010 HOSE – Flexible, tank strainer to fuel line 3 x x x x x x x 23.8
connector
U82371-010 C HOSE – Flexible, fuel line to right rear wing tank 1 x x x x x x x 23.8
attachment

-11 AN840-6D NIPPLE – Tank strainer to fuel line 3 x x x x x x x 11.96
AN840-6D C NIPPLE – Tank strainer to fuel line, right rear 1 x x x x x x x 11.96
fuel tank
-12 U72091-000 STRAINER ASSEMBLY – Fuel tank outlet (In tank) 3 x x x x x x x 69.26
U72091-000 C STRAINER ASSEMBLY – Fuel tank outlet (In tank) 1 x x x x x x x 69.26
-13 U11034-000 COVER ASSEMBLY – Fuel tank brace 4 x x x x x x x 21.87
-14 U80122-048 WASHER – Fuel seal 2 x x x x x x x 8.21
-15 -180-497 FELT – Wing tank cover, SAE F-50 10’ x x x x x x x 4.67
-16 U10849-016 TANK ASSEMBLY – Fuel, LH 1 x 1954.17
U10849-034 TANK ASSEMBLY – Fuel, LH 1 x x x x x x 2105.1

Date of Issue – March 1954 2
