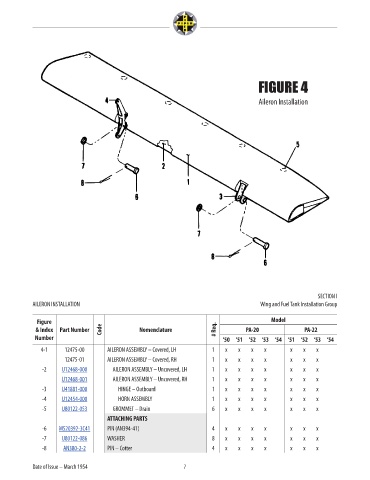

FIGURE 4

Aileron Installation

SECTION I
AILERON INSTALLATION Wing and Fuel Tank Installation Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
4-1 12475-00 AILERON ASSEMBLY – Covered, LH 1 x x x x x x x NM!
12475-01 AILERON ASSEMBLY – Covered, RH 1 x x x x x x x NM!
-2 U12468-000 AILERON ASSEMBLY – Uncovered, LH 1 x x x x x x x 1774.17
U12468-001 AILERON ASSEMBLY – Uncovered, RH 1 x x x x x x x 1774.17
-3 U41881-000 HINGE – Outboard 1 x x x x x x x 82.71
-4 U12454-000 HORN ASSEMBLY 1 x x x x x x x 504.41

-5 U80122-053 GROMMET – Drain 6 x x x x x x x
ATTACHING PARTS
-6 MS20392-3C41 PIN (AN394-41) 4 x x x x x x x 1.6
-7 U80122-086 WASHER 8 x x x x x x x 2.46
-8 AN380-2-2 PIN – Cotter 4 x x x x x x x 0.04

Date of Issue – March 1954 7
