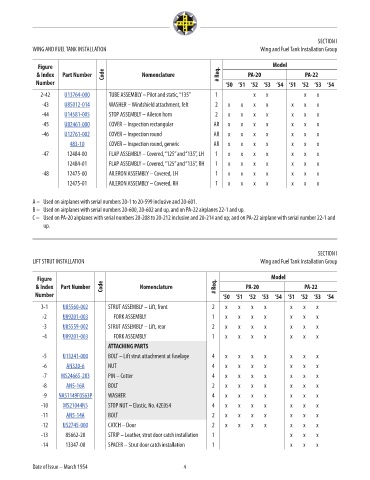

SECTION I
WING AND FUEL TANK INSTALLATION Wing and Fuel Tank Installation Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price

2-42 U13764-000 TUBE ASSEMBLY – Pilot and static, “135” 1 x x x x 197.25
-43 U85012-014 WASHER – Windshield attachment, felt 2 x x x x x x x 4.67
-44 U14581-005 STOP ASSEMBLY – Aileron horn 2 x x x x x x x 160.86
-45 U82461-000 COVER – Inspection rectangular AR x x x x x x x 18.02
-46 U12761-002 COVER – Inspection round AR x x x x x x x 46.86
483-10 COVER – Inspection round, generic AR x x x x x x x 2.25
-47 12484-00 FLAP ASSEMBLY – Covered, “125” and “135”, LH 1 x x x x x x x NM!
12484-01 FLAP ASSEMBLY – Covered, “125” and “135”, RH 1 x x x x x x x NM!
-48 12475-00 AILERON ASSEMBLY – Covered, LH 1 x x x x x x x NM!
12475-01 AILERON ASSEMBLY – Covered, RH 1 x x x x x x x NM!

A – Used on airplanes with serial numbers 20-1 to 20-599 inclusive and 20-601.
B – Used on airplanes with serial numbers 20-600, 20-602 and up, and on PA-22 airplanes 22-1 and up.
C – Used on PA-20 airplanes with serial numbers 20-208 to 20-212 inclusive and 20-214 and up; and on PA-22 airplane with serial number 22-1 and
up.

SECTION I
LIFT STRUT INSTALLATION Wing and Fuel Tank Installation Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
3-1 U85560-002 STRUT ASSEMBLY – Lift, front 2 x x x x x x x 703.93
-2 U89201-003 FORK ASSEMBLY 1 x x x x x x x 148.92
-3 U85559-002 STRUT ASSEMBLY – Lift, rear 2 x x x x x x x 703.93
-4 U89201-003 FORK ASSEMBLY 1 x x x x x x x 148.92
ATTACHING PARTS x

-5 U13241-000 BOLT – Lift strut attachment at fuselage 4 x x x x x x x 17.42
-6 AN320-6 NUT 4 x x x x x x x 1
-7 MS24665-283 PIN – Cotter 4 x x x x x x x 0.04
-8 AN5-16A BOLT 2 x x x x x x x 0.76
-9 NAS1149F0563P WASHER 4 x x x x x x x 0.08
-10 MS21044N5 STOP NUT – Elastic, No. 42E054 4 x x x x x x x 0.4
-11 AN5-14A BOLT 2 x x x x x x x 0.58
-12 U52745-000 CATCH – Door 2 x x x x x x x 5.07
-13 85662-28 STRIP – Leather, strut door catch installation 1 x x x NM!
-14 13347-00 SPACER – Strut door catch installation 1 x x x NM!

Date of Issue – March 1954 4
