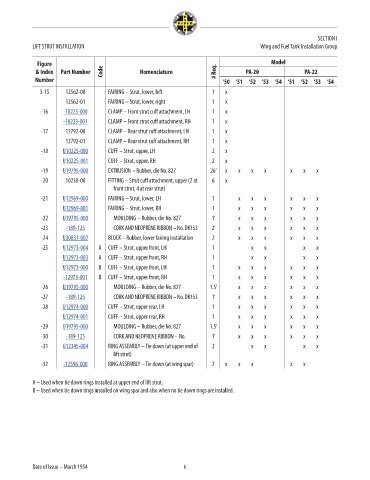

LIFT STRUT INSTALLATION Wing and Fuel Tank Installation Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
3-15 12562-00 FAIRING – Strut, lower, left 1 x NM!
12562-01 FAIRING – Strut, lower, right 1 x NM!
-16 -10223-000 CLAMP – Front strut cuff attachment, LH 1 x 88.55
-10223-001 CLAMP – Front strut cuff attachment, RH 1 x 43.26
-17 12792-00 CLAMP – Rear strut cuff attachment, LH 1 x NM!
12792-01 CLAMP – Rear strut cuff attachment, RH 1 x NM!
-18 U10225-000 CUFF – Strut, upper, LH 2 x 110.17
U10225-001 CUFF – Strut, upper, RH 2 x 110.17
-19 U19795-000 EXTRUSION – Rubber, die No. 827 26’ x x x x x x x 27.08
-20 10230-00 FITTING – Strut cuff attachment, upper (2 at 6 x NM!
front strut, 4 at rear strut)
-21 U12969-000 FAIRING – Strut, lower, LH 1 x x x x x x 157.02
U12969-001 FAIRING – Strut, lower, RH 1 x x x x x x 157.02
-22 U19795-000 MOULDING – Rubber, die No. 827 1’ x x x x x x 27.08
-23 -189-125 CORK AND NEOPRENE RIBBON – No. DK153 2’ x x x x x x 4.22
-24 U30831-002 BLOCK – Rubber, lower fairing installation 2 x x x x x x 13.08
-25 U12973-004 A CUFF – Strut, upper front, LH 1 x x x x 151.28
U12973-003 A CUFF – Strut, upper front, RH 1 x x x x 151.28
U12973-000 B CUFF – Strut, upper front, LH 1 x x x x x x 137.96
-12973-001 B CUFF – Strut, upper front, RH 1 x x x x x x 137.96
-26 U19795-000 MOULDING – Rubber, die No. 827 1.5’ x x x x x x 27.08
-27 -189-125 CORK AND NEOPRENE RIBBON – No. DK153 1’ x x x x x x 4.22
-28 U12974-000 CUFF – Strut, upper rear, LH 1 x x x x x x 104
U12974-001 CUFF – Strut, upper rear, RH 1 x x x x x x 104
-29 U19795-000 MOULDING – Rubber, die No. 827 1.5’ x x x x x x 27.08
-30 -189-125 CORK AND NEOPRENE RIBBON – No. 1’ x x x x x x 4.22
-31 U12345-004 RING ASSEMBLY – Tie down (at upper end of 2 x x x x 63.77
lift strut)
-32 -12596-000 RING ASSEMBLY – Tie down (at wing spar) 2 x x x x x 82.5

A – Used when tie down rings installed at upper end of lift strut.
B – Used when tie down rings installed on wing spar and also when no tie down rings are installed.
