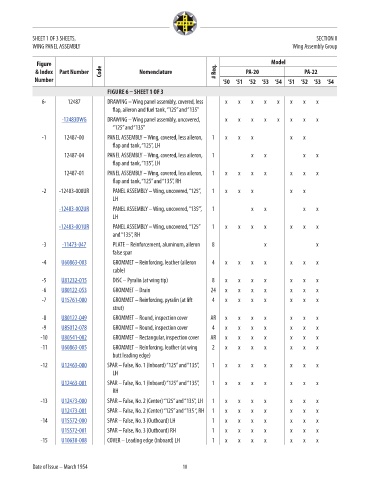

SHEET 1 OF 3 SHEETS, SECTION II
WING PANEL ASSEMBLY Wing Assembly Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
FIGURE 6 – SHEET 1 OF 3
6- 12487 DRAWING – Wing panel assembly, covered, less x x x x x x x x NM!
flap, aileron and fuel tank, “125” and “135”
-12483DWG DRAWING – Wing panel assembly, uncovered, x x x x x x x x 65.97
“125” and “135”
-1 12487-00 PANEL ASSEMBLY – Wing, covered, less aileron, 1 x x x x x NM!
flap and tank, “125”, LH
12487-04 PANEL ASSEMBLY – Wing, covered, less aileron, 1 x x x x NM!
flap and tank, “135”, LH
12487-01 PANEL ASSEMBLY – Wing, covered, less aileron, 1 x x x x x x x NM!
flap and tank, “125” and “135”, RH
-2 -12483-000UR PANEL ASSEMBLY – Wing, uncovered, “125”, 1 x x x x x NM!
LH
-12483-002UR PANEL ASSEMBLY – Wing, uncovered, “135”’, 1 x x x x 11501.86
LH
-12483-001UR PANEL ASSEMBLY – Wing, uncovered, “125” 1 x x x x x x x 11270.82
and “135”, RH
-3 -11473-047 PLATE – Reinforcement, aluminum, aileron 8 x x 13.07
false spar
-4 U60863-003 GROMMET – Reinforcing, leather (aileron 4 x x x x x x x 4.14
cable)
-5 U81232-015 DISC – Pyralin (at wing tip) 8 x x x x x x x 2.2
-6 U80122-053 GROMMET – Drain 24 x x x x x x x 4.09
-7 U15761-000 GROMMET – Reinforcing, pyralin (at lift 4 x x x x x x x 8.71
strut)
-8 U80122-049 GROMMET – Round, inspection cover AR x x x x x x x 5.7
-9 U85012-078 GROMMET – Round, inspection cover 4 x x x x x x x 8.99
-10 U80541-002 GROMMET – Rectangular, inspection cover AR x x x x x x x 14.81
-11 U60863-005 GROMMET – Reinforcing, leather (at wing 2 x x x x x x x 9.18
butt leading edge)
-12 U12463-000 SPAR – False, No. 1 (Inboard) “125” and “135”, 1 x x x x x x x 296.54
LH
U12463-001 SPAR – False, No. 1 (Inboard) “125” and “135”, 1 x x x x x x x 260.24
RH
-13 U12473-000 SPAR – False, No. 2 (Center) “125” and “135”, LH 1 x x x x x x x 91.18
U12473-001 SPAR – False, No. 2 (Center) “125” and “135 “, RH 1 x x x x x x x 97.19
-14 U15572-000 SPAR – False, No. 3 (Outboard) LH 1 x x x x x x x 65.98
U15572-001 SPAR – False, No. 3 (Outboard) RH 1 x x x x x x x 57.54
-15 U10630-008 COVER – Leading edge (Inboard) LH 1 x x x x x x x 137.46

Date of Issue – March 1954 10
