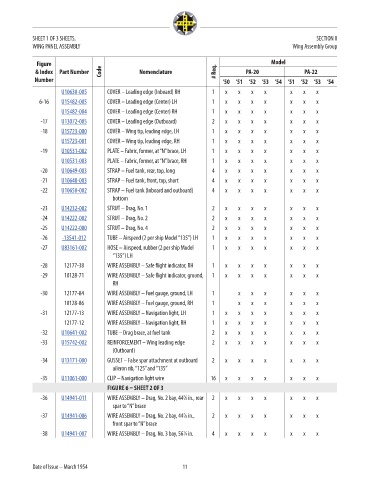

SHEET 1 OF 3 SHEETS, SECTION II
WING PANEL ASSEMBLY Wing Assembly Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
U10630-005 COVER – Leading edge (Inboard) RH 1 x x x x x x x 149.05
6-16 U15482-005 COVER – Leading edge (Center) LH 1 x x x x x x x 241.38
U15482-004 COVER – Leading edge (Center) RH 1 x x x x x x x 241.38
-17 U13072-005 COVER – Leading edge (Outboard) 2 x x x x x x x 64.68
-18 U15723-000 COVER – Wing tip, leading edge, LH 1 x x x x x x x 252.99
U15723-001 COVER – Wing tip, leading edge, RH 1 x x x x x x x 258.71
-19 U10531-002 PLATE – Fabric, former, at “N” brace, LH 1 x x x x x x x 65.39
U10531-003 PLATE – Fabric, former, at “N” brace, RH 1 x x x x x x x 84.4
-20 U10649-003 STRAP – Fuel tank, rear, top, long 4 x x x x x x x 78.95
-21 U10648-003 STRAP – Fuel tank, front, top, short 4 x x x x x x x 51.95
-22 U10650-002 STRAP – Fuel tank (Inboard and outboard) 4 x x x x x x x 69.82
bottom
-23 U14232-002 STRUT – Drag, No. 1 2 x x x x x x x 157.87
-24 U14222-002 STRUT – Drag, No. 2 2 x x x x x x x 155.77
-25 U14222-000 STRUT – Drag, No. 4 2 x x x x x x x 154.61
-26 -13541-012 TUBE – Airspeed (2 per ship Model “135”) LH 1 x x x x x x x 59.69
-27 U83161-002 HOSE – Airspeed, rubber (2 per ship Model 1 x x x x x x x 5.91
“135”) LH
-28 12177-38 WIRE ASSEMBLY – Safe flight indicator, RH 1 x x x x x x x NM!
-29 10128-71 WIRE ASSEMBLY – Safe flight indicator, ground, 1 x x x x x x x NM!
RH
-30 12177-84 WIRE ASSEMBLY – Fuel gauge, ground, LH 1 x x x x x x NM!
10128-86 WIRE ASSEMBLY – Fuel gauge, ground, RH 1 x x x x x x NM!
-31 12177-13 WIRE ASSEMBLY – Navigation light, LH 1 x x x x x x x NM!
12177-12 WIRE ASSEMBLY – Navigation light, RH 1 x x x x x x x NM!
-32 U10641-002 TUBE – Drag brace, at fuel tank 2 x x x x x x x 162.97
-33 U15742-002 REINFORCEMENT – Wing leading edge 2 x x x x x x x 68.73
(Outboard)

-34 U13171-000 GUSSET – False spar attachment at outboard 2 x x x x x x x 31.16
aileron rib, “125” and “135”
-35 U11061-000 CLIP – Navigation light wire 16 x x x x x x x 7.74
FIGURE 6 – SHEET 2 OF 3 x
7
-36 U14941-011 WIRE ASSEMBLY – Drag, No. 2 bay, 44 ⁄8 in., rear 2 x x x x x x x 110.13
spar to “N” brace
-37 U14941-006 WIRE ASSEMBLY – Drag, No. 2 bay, 44 ⁄8 in., 2 x x x x x x x 30.27
7
front spar to “N” brace
-38 U14941-007 WIRE ASSEMBLY – Drag, No. 3 bay, 56 ⁄4 in. 4 x x x x x x x 33.6
1

Date of Issue – March 1954 11
