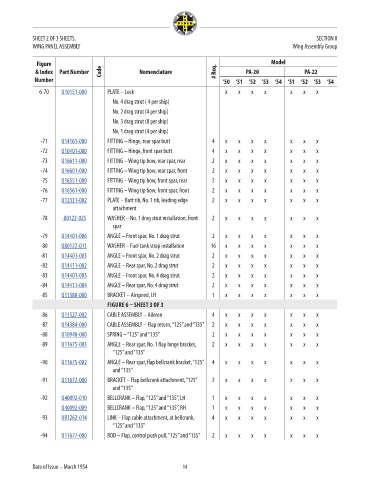

SHEET 2 OF 3 SHEETS, SECTION II
WING PANEL ASSEMBLY Wing Assembly Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
6-70 U10151-000 PLATE – Lock x x x x x x x 3.08
No. 4 drag strut ( 4 per ship) x
No. 2 drag strut (4 per ship) x
No. 3 drag strut (8 per ship) x
No. 1 drag strut (4 per ship) x
-71 U14161-000 FITTING – Hinge, rear spar butt 4 x x x x x x x 36.24
-72 U10401-000 FITTING – Hinge, front spar butt 4 x x x x x x x 45.84
-73 U16611-000 FITTING – Wing tip bow, rear spar, rear 2 x x x x x x x 11.9
-74 U16601-000 FITTING – Wing tip bow, rear spar, front 2 x x x x x x x 17.16
-75 U16551-000 FITTING – Wing tip bow, front spar, rear 2 x x x x x x x 21.32
-76 U16561-000 FITTING – Wing tip bow, front spar, front 2 x x x x x x x 17
-77 U12331-002 PLATE – Butt rib, No. 1 rib, leading edge 2 x x x x x x x 5.58
attachment
-78 -80122-025 WASHER – No. 1 drag strut installation, front 2 x x x x x x x 6.92
spar
-79 U14401-006 ANGLE – Front spar, No. 1 drag strut 2 x x x x x x x 10.66
-80 U80122-011 WASHER – Fuel tank strap installation 16 x x x x x x x 1.13
-81 U14401-003 ANGLE – Front spar, No. 2 drag strut 2 x x x x x x x 13.8
-82 U14411-002 ANGLE – Rear spar, No. 2 drag strut 2 x x x x x x x 13.65
-83 U14401-005 ANGLE – Front spar, No. 4 drag strut 2 x x x x x x x 18.48
-84 U14411-004 ANGLE – Rear spar, No. 4 drag strut 2 x x x x x x x 12.74
-85 U11580-000 BRACKET – Airspeed, LH 1 x x x x x x x 18.39
FIGURE 6 – SHEET 3 OF 3 x
-86 U11527-002 CABLE ASSEMBLY – Aileron 4 x x x x x x x 157.82
-87 U14384-000 CABLE ASSEMBLY – Flap return, “125” and “135” 2 x x x x x x x 27.34
-88 U10940-000 SPRING – “125” and “135” 2 x x x x x x x 33.57
-89 U11675-003 ANGLE – Rear spar, No. 1 flap hinge bracket, 2 x x x x x x x 19.35
“125” and “135”
-90 U11675-002 ANGLE – Rear spar, flap bellcrank bracket, “125” 4 x x x x x x x 19.35
and “135”
-91 U11672-000 BRACKET – Flap bellcrank attachment, “125” 2 x x x x x x x 66.37
and “135”
-92 U40092-010 BELLCRANK – Flap, “125” and “135”, LH 1 x x x x x x x 189.43
U40092-009 BELLCRANK – Flap, “125” and “135”, RH 1 x x x x x x x 179.17
-93 U81262-014 LINK – Flap cable attachment, at bellcrank, 4 x x x x x x x 5.35
“125” and “135”
-94 U11677-000 ROD – Flap, control push pull, “125” and “135” 2 x x x x x x x 64.77

Date of Issue – March 1954 14
