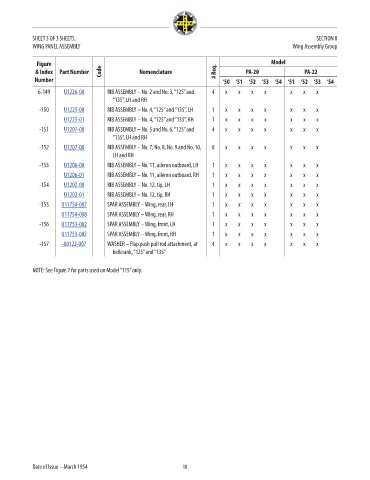

SHEET 3 OF 3 SHEETS, SECTION II
WING PANEL ASSEMBLY Wing Assembly Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
6-149 U1226-00 RIB ASSEMBLY – No. 2 and No. 3, “125” and 4 x x x x x x x 160.99
“135”, LH and RH
-150 U1225-00 RIB ASSEMBLY – No. 4, “125” and “135”, LH 1 x x x x x x x 178.05
U1225-01 RIB ASSEMBLY – No. 4, “125” and “135”, RH 1 x x x x x x x 145.49
-151 U1207-00 RIB ASSEMBLY – No. 5 and No. 6, “125” and 4 x x x x x x x 150.64
“135”, LH and RH
-152 U1207-00 RIB ASSEMBLY – No. 7, No. 8, No. 9 and No. 10, 8 x x x x x x x 150.64
LH and RH
-153 U1206-00 RIB ASSEMBLY – No. 11, aileron outboard, LH 1 x x x x x x x 185.34
U1206-01 RIB ASSEMBLY – No. 11, aileron outboard, RH 1 x x x x x x x 199.97
-154 U1202-00 RIB ASSEMBLY – No. 12, tip, LH 1 x x x x x x x 177.8
U1202-01 RIB ASSEMBLY – No. 12, tip, RH 1 x x x x x x x 178.74
-155 U11754-007 SPAR ASSEMBLY – Wing, rear, LH 1 x x x x x x x 648.13
U11754-008 SPAR ASSEMBLY – Wing, rear, RH 1 x x x x x x x 648.13
-156 U11753-002 SPAR ASSEMBLY – Wing, front, LH 1 x x x x x x x 671.69
U11753-007 SPAR ASSEMBLY – Wing, front, RH 1 x x x x x x x 671.69

-157 -80122-007 WASHER – Flap push pull rod attachment, at 4 x x x x x x x 6.11
bellcrank, “125” and “135”

NOTE: See Figure 7 for parts used on Model “115” only.

Date of Issue – March 1954 18
