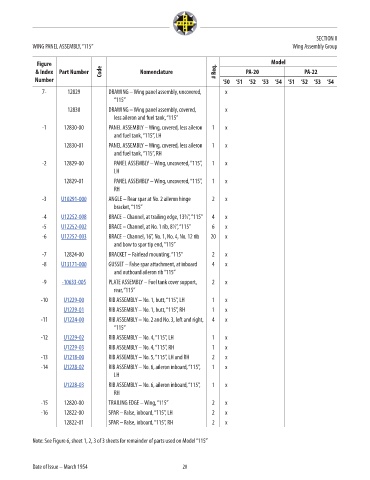

SECTION II
WING PANEL ASSEMBLY, “115” Wing Assembly Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
7- 12829 DRAWING – Wing panel assembly, uncovered, x NM!
“115”
12830 DRAWING – Wing panel assembly, covered, x NM!
less aileron and fuel tank, “115”

-1 12830-00 PANEL ASSEMBLY – Wing, covered, less aileron 1 x NM!
and fuel tank, “115”, LH
12830-01 PANEL ASSEMBLY – Wing, covered, less aileron 1 x NM!
and fuel tank, “115”, RH
-2 12829-00 PANEL ASSEMBLY – Wing, uncovered, “115”, 1 x NM!
LH
12829-01 PANEL ASSEMBLY – Wing, uncovered, “115”, 1 x NM!
RH
-3 U10291-000 ANGLE – Rear spar at No. 2 aileron hinge 2 x 23.85
bracket, “115”
-4 U12252-008 BRACE – Channel, at trailing edge, 13 ⁄4”, “115” 4 x 15.29
3
-5 U12252-002 BRACE – Channel, at No. 1 rib, 8 ⁄2”, “115” 6 x 13
1
-6 U12252-003 BRACE – Channel, 16”, No. 1, No. 4, No. 12 rib 20 x 16.86
and bow to spar tip end, “115”
-7 12824-00 BRACKET – Fairlead mounting, “115” 2 x NM!
-8 U13171-000 GUSSET – False spar attachment, at inboard 4 x 31.16
and outboard aileron rib “115”
-9 -10633-005 PLATE ASSEMBLY – Fuel tank cover support, 2 x 84.2
rear, “115”
-10 U1229-00 RIB ASSEMBLY – No. 1, butt, “115”, LH 1 x 176.4
U1229-01 RIB ASSEMBLY – No. 1, butt, “115”, RH 1 x 175.22
-11 U1224-00 RIB ASSEMBLY – No. 2 and No. 3, left and right, 4 x 157.44
“115”
-12 U1229-02 RIB ASSEMBLY – No. 4, “115”, LH 1 x 133.84
U1229-03 RIB ASSEMBLY – No. 4, “115”, RH 1 x 173.25
-13 U1218-00 RIB ASSEMBLY – No. 5, “115”, LH and RH 2 x 131.32
-14 U1228-02 RIB ASSEMBLY – No. 6, aileron inboard, “115”, 1 x 141.64
LH
U1228-03 RIB ASSEMBLY – No. 6, aileron inboard, “115”, 1 x 141.64
RH
-15 12820-00 TRAILING EDGE – Wing, “115” 2 x NM!
-16 12822-00 SPAR – False, inboard, “115”, LH 2 x NM!
12822-01 SPAR – False, inboard, “115”, RH 2 x NM!

Note: See Figure 6, sheet 1, 2, 3 of 3 sheets for remainder of parts used on Model “115”

Date of Issue – March 1954 20
