P. 51

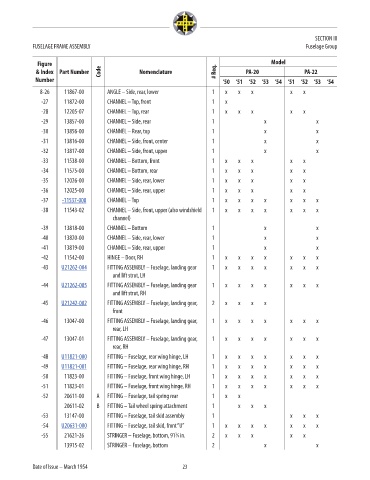

SECTION III
FUSELAGE FRAME ASSEMBLY Fuselage Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
8-26 11867-00 ANGLE – Side, rear, lower 1 x x x x x NM!
-27 11872-00 CHANNEL – Top, front 1 x NM!
-28 12205-07 CHANNEL – Top, rear 1 x x x x x NM!
-29 13857-00 CHANNEL – Side, rear 1 x x NM!
-30 13856-00 CHANNEL – Rear, top 1 x x NM!
-31 13816-00 CHANNEL – Side, front, center 1 x x NM!
-32 13817-00 CHANNEL – Side, front, upper 1 x x NM!
-33 11538-00 CHANNEL – Bottom, front 1 x x x x x NM!
-34 11575-00 CHANNEL – Bottom, rear 1 x x x x x NM!
-35 12026-00 CHANNEL – Side, rear, lower 1 x x x x x NM!
-36 12025-00 CHANNEL – Side, rear, upper 1 x x x x x NM!
-37 -11537-000 CHANNEL – Top 1 x x x x x x x 47.48
-38 11543-02 CHANNEL – Side, front, upper (also windshield 1 x x x x x x x NM!
channel)
-39 13818-00 CHANNEL – Bottom 1 x x NM!
-40 13820-00 CHANNEL – Side, rear, lower 1 x x NM!
-41 13819-00 CHANNEL – Side, rear, upper 1 x x NM!
-42 11542-00 HINGE – Door, RH 1 x x x x x x x NM!
-43 U21262-004 FITTING ASSEMBLY – Fuselage, landing gear 1 x x x x x x x 378.83
and lift strut, LH
-44 U21262-005 FITTING ASSEMBLY – Fuselage, landing gear 1 x x x x x x x 378.83
and lift strut, RH
-45 U21242-002 FITTING ASSEMBLY – Fuselage, landing gear, 2 x x x x 222.06
front
-46 13047-00 FITTING ASSEMBLY – Fuselage, landing gear, 1 x x x x x x x NM!
rear, LH
-47 13047-01 FITTING ASSEMBLY – Fuselage, landing gear, 1 x x x x x x x NM!
rear, RH
-48 U11821-000 FITTING – Fuselage, rear wing hinge, LH 1 x x x x x x x 46.17
-49 U11821-001 FITTING – Fuselage, rear wing hinge, RH 1 x x x x x x x 46.17
-50 11823-00 FITTING – Fuselage, front wing hinge, LH 1 x x x x x x x NM!
-51 11823-01 FITTING – Fuselage, front wing hinge, RH 1 x x x x x x x NM!
-52 20611-00 A FITTING – Fuselage, tail spring rear 1 x x NM!
20611-02 B FITTING – Tail wheel spring attachment 1 x x x NM!
-53 13147-00 FITTING – Fuselage, tail skid assembly 1 x x x NM!
-54 U20631-000 FITTING – Fuselage, tail skid, front “U” 1 x x x x x x x 43.69
3
-55 21621-26 STRINGER – Fuselage, bottom, 91 ⁄4 in. 2 x x x x x NM!
13915-02 STRINGER – Fuselage, bottom 2 x x NM!

Date of Issue – March 1954 23
