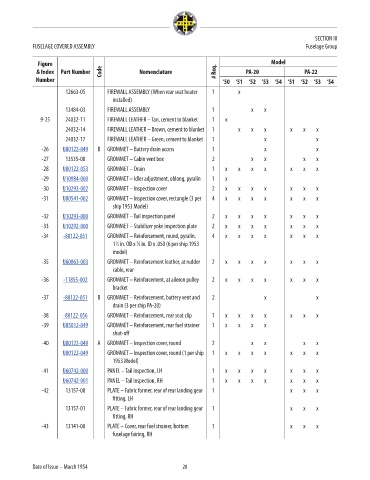

SECTION III
FUSELAGE COVERED ASSEMBLY Fuselage Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
12663-05 FIREWALL ASSEMBLY (When rear seat heater 1 x NM!
installed)
13484-03 FIREWALL ASSEMBLY 1 x x NM!
9-25 24032-11 FIREWALL LEATHER – Tan, cement to blanket 1 x NM!
24032-14 FIREWALL LEATHER – Brown, cement to blanket 1 x x x x x x NM!
24032-17 FIREWALL LEATHER – Green, cement to blanket 1 x x NM!
-26 U80122-049 B GROMMET – Battery drain access 1 x x 5.7
-27 13535-00 GROMMET – Cabin vent box 2 x x x x NM!
-28 U80122-053 GROMMET – Drain 1 x x x x x x x 4.09
-29 U10984-000 GROMMET – Idler adjustment, oblong, pyralin 1 x 18.7
-30 U10293-002 GROMMET – Inspection cover 2 x x x x x x x 22.83
-31 U80541-002 GROMMET – Inspection cover, rectangle (3 per 4 x x x x x x x 14.81
ship 1953 Model)
-32 U10293-000 GROMMET – Tail inspection panel 2 x x x x x x x 10.71
-33 U10292-000 GROMMET – Stabilizer yoke inspection plate 2 x x x x x x x 13
-34 -80122-051 GROMMET – Reinforcement, round, pyralin, 4 x x x x x x x 4.37
1
3
1 ⁄2 in. OD x ⁄4 in. ID x .050 (6 per ship 1953
model)
-35 U60863-003 GROMMET – Reinforcement leather, at rudder 2 x x x x x x x 4.14
cable, rear
-36 -11855-002 GROMMET – Reinforcement, at aileron pulley 2 x x x x x x x 10.21
bracket
-37 -80122-051 B GROMMET – Reinforcement, battery vent and 2 x x 4.37
drain (3 per ship PA-20)
-38 -80122-056 GROMMET – Reinforcement, rear seat clip 1 x x x x x x x 12.79
-39 U85012-049 GROMMET – Reinforcement, rear fuel strainer 1 x x x x 5.1
shut-off
-40 U80122-049 A GROMMET – Inspection cover, round 2 x x x x 5.7
U80122-049 GROMMET – Inspection cover, round (1 per ship 1 x x x x x x x 5.7
1953 Model)
-41 U60742-000 PANEL – Tail inspection, LH 1 x x x x x x x 38.43
U60742-001 PANEL – Tail inspection, RH 1 x x x x x x x 38.43
-42 13157-00 PLATE – Fabric former, rear of rear landing gear 1 x x x NM!
fitting, LH
13157-01 PLATE – Fabric former, rear of rear landing gear 1 x x x NM!
fitting, RH
-43 13141-00 PLATE – Cover, rear fuel strainer, bottom 1 x x x NM!
fuselage fairing, RH

Date of Issue – March 1954 28
