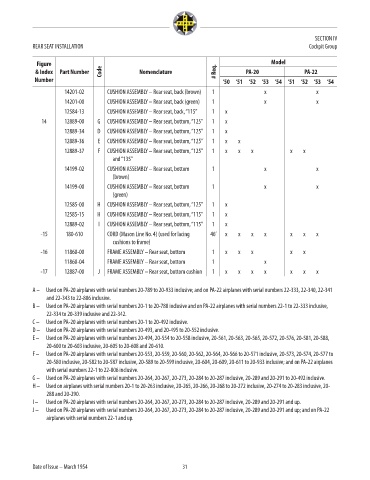

P. 59

SECTION IV
            REAR SEAT INSTALLATION                                                                     Cockpit Group

             Figure                                                                        Model
             & Index  Part Number  Code        Nomenclature             # Req.    PA-20               PA-22
             Number                                                        ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54                         Price
                      14201-02       CUSHION ASSEMBLY – Rear seat, back (brown)  1      x                 x                      NM!
                      14201-00       CUSHION ASSEMBLY – Rear seat, back (green)  1      x                 x                      NM!
                      12584-13       CUSHION ASSEMBLY – Rear seat, back, “115”  1  x                                             NM!
               14     12889-00   G   CUSHION ASSEMBLY – Rear seat, bottom, “125”  1  x                                           NM!
                      12889-34   D   CUSHION ASSEMBLY – Rear seat, bottom, “125”  1  x                                           NM!
                      12889-36   E   CUSHION ASSEMBLY – Rear seat, bottom, “125”  1  x  x                                        NM!
                      12889-37   F   CUSHION ASSEMBLY – Rear seat, bottom, “125”   1  x  x  x    x   x                           NM!
                                      and “135”
                      14199-02       CUSHION ASSEMBLY – Rear seat, bottom   1           x                 x                      NM!
                                      (brown)
                      14199-00       CUSHION ASSEMBLY – Rear seat, bottom   1           x                 x                      NM!
                                      (green)
                      12585-00   H   CUSHION ASSEMBLY – Rear seat, bottom, “125”  1  x                                           NM!
                      12585-15   H   CUSHION ASSEMBLY – Rear seat, bottom, “115”  1  x                                           NM!
                      12889-02    I  CUSHION ASSEMBLY – Rear seat, bottom, “115”  1  x                                           NM!
              -15      180-610       CORD (Mason Line No. 4) (used for lacing   46’  x  x  x  x  x   x    x                      NM!
                                      cushions to frame)
              -16     11860-00       FRAME ASSEMBLY – Rear seat, bottom  1  x   x   x            x   x                           NM!
                      11860-04       FRAME ASSEMBLY – Rear seat, bottom  1              x                                        NM!
              -17     12887-00   J   FRAME ASSEMBLY – Rear seat, bottom cushion  1  x  x  x  x   x   x    x                      NM!


            A –   Used on PA-20 airplanes with serial numbers 20-789 to 20-933 inclusive; and on PA-22 airplanes with serial numbers 22-333, 22-340, 22-341
                and 22-343 to 22-806 inclusive.
            B –   Used on PA-20 airplanes with serial numbers 20-1 to 20-788 inclusive and on PA-22 airplanes with serial numbers 22-1 to 22-333 inclusive,
                22-334 to 20-339 inclusive and 22-342.
            C –   Used on PA-20 airplanes with serial numbers 20-1 to 20-492 inclusive.
            D –   Used on PA-20 airplanes with serial numbers 20-493, and 20-495 to 20-552 inclusive.
            E –   Used on PA-20 airplanes with serial numbers 20-494, 20-554 to 20-558 inclusive, 20-561, 20-563, 20-565, 20-572, 20-576, 20-581, 20-588,
                20-600 to 20-603 inclusive, 20-605 to 20-608 and 20-610.
            F –   Used on PA-20 airplanes with serial numbers 20-553, 20-559, 20-560, 20-562, 20-564, 20-566 to 20-571 inclusive, 20-573, 20-574, 20-577 to
                20-580 inclusive, 20-582 to 20-587 inclusive, 20-589 to 20-599 inclusive, 20-604, 20-609, 20-611 to 20-933 inclusive; and on PA-22 airplanes
                with serial numbers 22-1 to 22-806 inclusive.
            G –   Used on PA-20 airplanes with serial numbers 20-264, 20-267, 20-273, 20-284 to 20-287 inclusive, 20-289 and 20-291 to 20-492 inclusive.
            H –   Used on airplanes with serial numbers 20-1 to 20-263 inclusive, 20-265, 20-266, 20-268 to 20-272 inclusive, 20-274 to 20-283 inclusive, 20-
                288 and 20-290.
            I –   Used on PA-20 airplanes with serial numbers 20-264, 20-267, 20-273, 20-284 to 20-287 inclusive, 20-289 and 20-291 and up.
            J –   Used on PA-20 airplanes with serial numbers 20-264, 20-267, 20-273, 20-284 to 20-287 inclusive, 20-289 and 20-291 and up; and on PA-22
                airplanes with serial numbers 22-1 and up.








            Date of Issue – March 1954                       31
