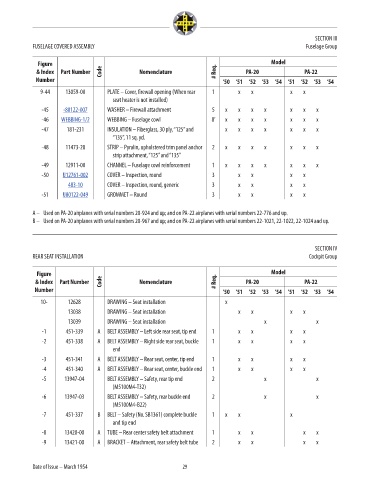

SECTION III
FUSELAGE COVERED ASSEMBLY Fuselage Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
9-44 13059-00 PLATE – Cover, firewall opening (When rear 1 x x x x NM!
seat heater is not installed)
-45 -80122-007 WASHER – Firewall attachment 5 x x x x x x x 6.11
-46 WEBBING-1/2 WEBBING – Fuselage cowl 8’ x x x x x x x 0.8
-47 181-231 INSULATION – Fiberglass, 30 ply, “125” and x x x x x x x NM!
“135”, 11 sq. yd.
-48 11473-28 STRIP – Pyralin, upholstered trim panel anchor 2 x x x x x x x NM!
strip attachment, “125” and “135”
-49 12911-00 CHANNEL – Fuselage cowl reinforcement 1 x x x x x x x NM!
-50 U12761-002 COVER – Inspection, round 3 x x x x 46.86
483-10 COVER – Inspection, round, generic 3 x x x x 2.25
-51 U80122-049 GROMMET – Round 3 x x x x 5.7

A – Used on PA-20 airplanes with serial numbers 20-924 and up; and on PA-22 airplanes with serial numbers 22-776 and up.
B – Used on PA-20 airplanes with serial numbers 20-967 and up; and on PA-22 airplanes with serial numbers 22-1021, 22-1022, 22-1024 and up.

SECTION IV
REAR SEAT INSTALLATION Cockpit Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
10- 12628 DRAWING – Seat installation x NM!

13038 DRAWING – Seat installation x x x x NM!
13039 DRAWING – Seat installation x x NM!
-1 451-339 A BELT ASSEMBLY – Left side rear seat, tip end 1 x x x x NM!
-2 451-338 A BELT ASSEMBLY – Right side rear seat, buckle 1 x x x x NM!
end
-3 451-341 A BELT ASSEMBLY – Rear seat, center, tip end 1 x x x x NM!
-4 451-340 A BELT ASSEMBLY – Rear seat, center, buckle end 1 x x x x NM!
-5 13947-04 BELT ASSEMBLY – Safety, rear tip end 2 x x NM!
(M5100M4-T32)
-6 13947-03 BELT ASSEMBLY – Safety, rear buckle end 2 x x NM!
(M5100M4-B22)
-7 451-337 B BELT – Safety (No. SB1361) complete buckle 1 x x x NM!
and tip end
-8 13420-00 A TUBE – Rear center safety belt attachment 1 x x x x NM!
-9 13421-00 A BRACKET – Attachment, rear safety belt tube 2 x x x x NM!

Date of Issue – March 1954 29
