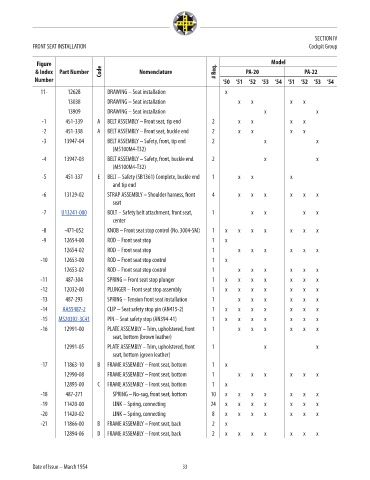

SECTION IV
FRONT SEAT INSTALLATION Cockpit Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
11- 12628 DRAWING – Seat installation x NM!
13038 DRAWING – Seat installation x x x x NM!
13909 DRAWING – Seat installation x x NM!
-1 451-339 A BELT ASSEMBLY – Front seat, tip end 2 x x x x NM!
-2 451-338 A BELT ASSEMBLY – Front seat, buckle end 2 x x x x NM!
-3 13947-04 BELT ASSEMBLY – Safety, front, tip end 2 x x NM!
(M5100M4-T32)
-4 13947-03 BELT ASSEMBLY – Safety, front, buckle end 2 x x NM!
(M5100M4-T32)
-5 451-337 E BELT – Safety (SB1361) Complete, buckle end 1 x x x NM!
and tip end
-6 13129-02 STRAP ASSEMBLY – Shoulder harness, front 4 x x x x x x NM!
seat
-7 U13241-000 BOLT – Safety belt attachment, front seat, 1 x x x x 17.42
center
-8 -471-052 KNOB – Front seat stop control (No. 3004-SM) 1 x x x x x x x 5.39
-9 12654-00 ROD – Front seat stop 1 x NM!
12654-02 ROD – Front seat stop 1 x x x x x x NM!
-10 12653-00 ROD – Front seat stop control 1 x NM!
12653-02 ROD – Front seat stop control 1 x x x x x x NM!
-11 487-304 SPRING – Front seat stop plunger 1 x x x x x x x NM!
-12 12032-00 PLUNGER – Front seat stop assembly 1 x x x x x x x NM!
-13 487-293 SPRING – Tension front seat installation 1 x x x x x x NM!
-14 AA55487-2 CLIP – Seat safety stop pin (AN415-2) 1 x x x x x x x 0.58
-15 MS20392-3C41 PIN – Seat safety stop (AN394-41) 1 x x x x x x x 1.6
-16 12991-00 PLATE ASSEMBLY – Trim, upholstered, front 1 x x x x x x NM!
seat, bottom (brown leather)
12991-05 PLATE ASSEMBLY – Trim, upholstered, front 1 x x NM!
seat, bottom (green leather)
-17 11863-10 B FRAME ASSEMBLY – Front seat, bottom 1 x NM!
12990-08 FRAME ASSEMBLY – Front seat, bottom 1 x x x x x x NM!
12893-00 C FRAME ASSEMBLY – Front seat, bottom 1 x NM!
-18 487-271 SPRING – No-sag, front seat, bottom 10 x x x x x x x NM!
-19 11420-00 LINK – Spring, connecting 24 x x x x x x x NM!
-20 11420-02 LINK – Spring, connecting 8 x x x x x x x NM!
-21 11866-00 B FRAME ASSEMBLY – Front seat, back 2 x NM!

12894-06 D FRAME ASSEMBLY – Front seat, back 2 x x x x x x x NM!

Date of Issue – March 1954 33
