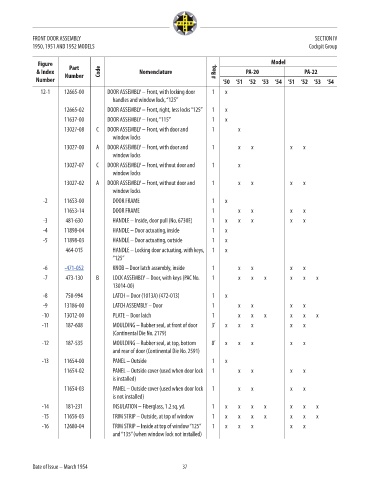

FRONT DOOR ASSEMBLY SECTION IV
1950, 1951 AND 1952 MODELS Cockpit Group

Figure Model
& Index Part Code Nomenclature # Req. PA-20 PA-22
Number Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
12-1 12665-00 DOOR ASSEMBLY – Front, with locking door 1 x NM!
handles and window lock, “125”
12665-02 DOOR ASSEMBLY – Front, right, less locks “125” 1 x NM!
11637-00 DOOR ASSEMBLY – Front, “115” 1 x NM!
13027-08 C DOOR ASSEMBLY – Front, with door and 1 x NM!
window locks
13027-00 A DOOR ASSEMBLY – Front, with door and 1 x x x x NM!
window locks
13027-07 C DOOR ASSEMBLY – Front, without door and 1 x NM!
window locks
13027-02 A DOOR ASSEMBLY – Front, without door and 1 x x x x NM!
window locks
-2 11653-00 DOOR FRAME 1 x NM!

11653-14 DOOR FRAME 1 x x x x NM!
-3 481-630 HANDLE – Inside, door pull (No. 6730E) 1 x x x x x NM!
-4 11898-04 HANDLE – Door actuating, inside 1 x NM!
-5 11898-03 HANDLE – Door actuating, outside 1 x NM!
464-015 HANDLE – Locking door actuating, with keys, 1 x NM!
“125”
-6 -471-052 KNOB – Door latch assembly, inside 1 x x x x 5.39
-7 473-130 B LOCK ASSEMBLY – Door, with keys (PAC No. 1 x x x x x x NM!
13014-00)
-8 750-994 LATCH – Door (1013A) (472-013) 1 x NM!
-9 13186-00 LATCH ASSEMBLY – Door 1 x x x x NM!
-10 13012-00 PLATE – Door latch 1 x x x x x x NM!
-11 187-608 MOULDING – Rubber seal, at front of door 3’ x x x x x NM!
(Continental Die No. 2179)
-12 187-535 MOULDING – Rubber seal, at top, bottom 8’ x x x x x NM!
and rear of door (Continental Die No. 2591)
-13 11654-00 PANEL – Outside 1 x NM!
11654-02 PANEL – Outside cover (used when door lock 1 x x x x NM!
is installed)
11654-03 PANEL – Outside cover (used when door lock 1 x x x x NM!
is not installed)
-14 181-231 INSULATION – Fiberglass, 1.2 sq. yd. 1 x x x x x x x NM!
-15 11656-03 TRIM STRIP – Outside, at top of window 1 x x x x x x x NM!
-16 12680-04 TRIM STRIP – Inside at top of window “125” 1 x x x x x NM!
and “135” (when window lock not installed)
