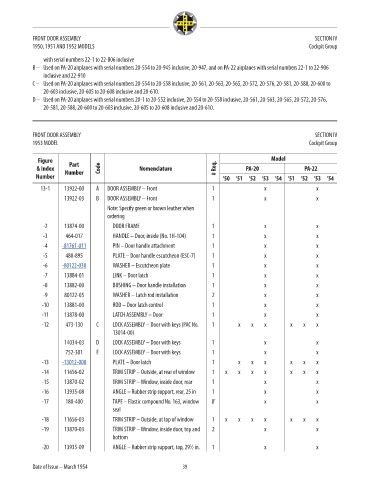

Page 67 - Piper PA-20 Interactive Digital Parts Catalog

FRONT DOOR ASSEMBLY SECTION IV
1950, 1951 AND 1952 MODELS Cockpit Group
with serial numbers 22-1 to 22-806 inclusive
B – Used on PA-20 airplanes with serial numbers 20-554 to 20-945 inclusive, 20-947, and on PA-22 airplanes with serial numbers 22-1 to 22-906
inclusive and 22-910
C – Used on PA-20 airplanes with serial numbers 20-554 to 20-558 inclusive, 20-561, 20-563, 20-565, 20-572, 20-576, 20-581, 20-588, 20-600 to
20-603 inclusive, 20-605 to 20-608 inclusive and 20-610.
D – Used on PA-20 airplanes with serial numbers 20-1 to 20-552 inclusive, 20-554 to 20-558 inclusive, 20-561, 20-563, 20-565, 20-572, 20-576,
20-581, 20-588, 20-600 to 20-603 inclusive, 20-605 to 20-608 inclusive and 20-610.

FRONT DOOR ASSEMBLY SECTION IV
1953 MODEL Cockpit Group

Figure Model
Part
& Index Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
13-1 13922-00 A DOOR ASSEMBLY – Front 1 x x NM!
13922-03 B DOOR ASSEMBLY – Front 1 x x NM!
Note: Specify green or brown leather when x
ordering
-2 13874-00 DOOR FRAME 1 x x NM!
-3 464-017 HANDLE – Door, inside (No. 1H-104) 1 x x NM!
-4 -81761-011 PIN – Door handle attachment 1 x x 10.08
-5 480-895 PLATE – Door handle escutcheon (ESC-7) 1 x x NM!
-6 -80122-030 WASHER – Escutcheon plate 1 x x 15.44
-7 13884-01 LINK – Door latch 1 x x NM!
-8 13882-00 BUSHING – Door handle installation 1 x x NM!
-9 80122-05 WASHER – Latch rod installation 2 x x NM!
-10 13881-00 ROD – Door latch control 1 x x NM!
-11 13878-00 LATCH ASSEMBLY – Door 1 x x NM!
-12 473-130 C LOCK ASSEMBLY – Door with keys (PAC No. 1 x x x x x x NM!
13014-00)
14034-03 D LOCK ASSEMBLY – Door with keys 1 x x NM!
752-301 E LOCK ASSEMBLY – Door with keys 1 x x NM!
-13 -13012-000 PLATE – Door latch 1 x x x x x x 62.05
-14 11656-02 TRIM STRIP – Outside, at rear of window 1 x x x x x x x NM!
-15 13870-02 TRIM STRIP – Window, inside door, rear 1 x x NM!
-16 13935-08 ANGLE – Rubber strip support, rear, 25 in 1 x x NM!
-17 180-400 TAPE – Elastic compound No. 163, window 8’ x x NM!
seal
-18 11656-03 TRIM STRIP – Outside, at top of window 1 x x x x x x x NM!
-19 13870-03 TRIM STRIP – Window, inside door, top and 2 x x NM!
bottom
1
-20 13935-09 ANGLE – Rubber strip support, top, 29 ⁄2 in. 1 x x NM!

Date of Issue – March 1954 39
