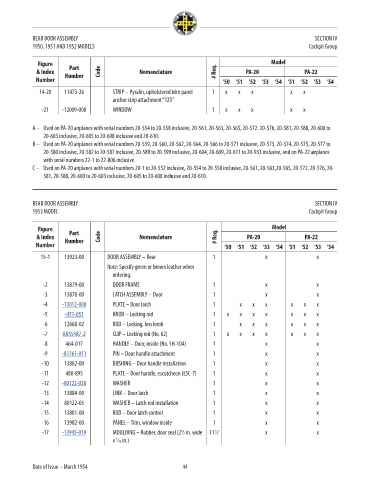

REAR DOOR ASSEMBLY SECTION IV
1950, 1951 AND 1952 MODELS Cockpit Group

Figure Model
& Index Part Code Nomenclature # Req. PA-20 PA-22
Number Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
14-20 11473-26 STRIP – Pyralin, upholstered trim panel 1 x x x x x NM!
anchor strip attachment “125”
-21 -12009-000 WINDOW 1 x x x x x NM!

A – Used on PA-20 airplanes with serial numbers 20-554 to 20-558 inclusive, 20-561, 20-563, 20-565, 20-572. 20-576, 20-581, 20-588, 20-600 to
20-603 inclusive, 20-605 to 20-608 inclusive and 20-610.
B – Used on PA-20 airplanes with serial numbers 20-559, 20-560, 20-562, 20-564, 20-566 to 20-571 inclusive, 20-573, 20-574, 20-575, 20-577 to
20-580 inclusive, 20-582 to 20-587 inclusive, 20-589 to 20-599 inclusive, 20-604, 20-609, 20-611 to 20-933 inclusive, and on PA-22 airplanes
with serial numbers 22-1 to 22-806 inclusive.
C – Used on PA-20 airplanes with serial numbers 20-1 to 20-552 inclusive, 20-554 to 20-558 inclusive, 20-561, 20-563,20-565, 20-572, 20-576, 20-
581, 20-588, 20-600 to 20-603 inclusive, 20-605 to 20-608 inclusive and 20-610.

REAR DOOR ASSEMBLY SECTION IV
1953 MODEL Cockpit Group

Figure Model
Part
& Index Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
15-1 13923-00 DOOR ASSEMBLY – Rear 1 x x NM!
Note: Specify green or brown leather when x
ordering.
-2 13879-00 DOOR FRAME 1 x x NM!
-3 13878-00 LATCH ASSEMBLY – Door 1 x x NM!
-4 -13012-000 PLATE – Door latch 1 x x x x x x 62.05
-5 -471-051 KNOB – Locking rod 1 x x x x x x x 2.19
-6 12668-02 ROD – Locking, less knob 1 x x x x x x NM!
-7 AA55487-2 CLIP – Locking rod (No. 62) 1 x x x x x x x 0.58
-8 464-017 HANDLE – Door, inside (No. 1H-104) 1 x x NM!
-9 -81761-011 PIN – Door handle attachment 1 x x 10.08
-10 13882-00 BUSHING – Door handle installation 1 x x NM!
-11 480-895 PLATE – Door handle, escutcheon (ESC-7) 1 x x NM!
-12 -80122-030 WASHER 1 x x 15.44
-13 13884-00 LINK – Door latch 1 x x NM!
-14 80122-05 WASHER – Latch rod installation 1 x x NM!
-15 13881-00 ROD – Door latch control 1 x x NM!
-16 13982-00 PANEL – Trim, window inside 1 x x NM!
1
1
-17 -13945-019 MOULDING – Rubber, door seal (2 ⁄2 in. wide 11 ⁄2’ x x 61.53
x ⁄16 in.)
1
