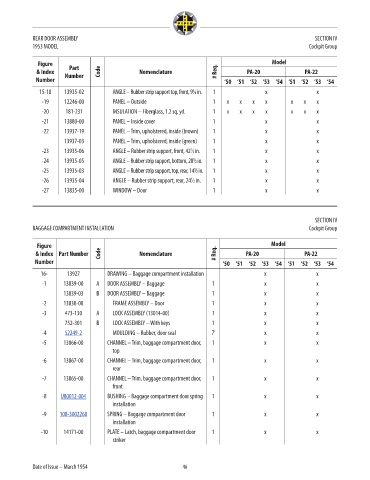

REAR DOOR ASSEMBLY SECTION IV
1953 MODEL Cockpit Group

Figure Model
& Index Part Code Nomenclature # Req. PA-20 PA-22
Number Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
3
15-18 13935-02 ANGLE – Rubber strip support top, front, 9 ⁄4 in. 1 x x NM!
-19 12246-00 PANEL – Outside 1 x x x x x x x NM!
-20 181-231 INSULATION – Fiberglass, 1.2 sq. yd. 1 x x x x x x x NM!
-21 13880-00 PANEL – Inside cover 1 x x NM!
-22 13937-19 PANEL – Trim, upholstered, inside (brown) 1 x x NM!
13937-03 PANEL – Trim, upholstered, inside (green) 1 x x NM!
-23 13935-06 ANGLE – Rubber strip support, front, 42 ⁄2 in. 1 x x NM!
1
-24 13935-05 ANGLE – Rubber strip support, bottom, 28 ⁄2 in. 1 x x NM!
1
-25 13935-03 ANGLE – Rubber strip support, top, rear, 14 ⁄2 in. 1 x x NM!
1
-26 13935-04 ANGLE – Rubber strip support, rear, 24 ⁄2 in. 1 x x NM!
1
-27 13835-00 WINDOW – Door 1 x x NM!

SECTION IV
BAGGAGE COMPARTMENT INSTALLATION Cockpit Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price

16- 13927 DRAWING – Baggage compartment installation x x NM!
-1 13839-00 A DOOR ASSEMBLY – Baggage 1 x x NM!
13839-03 B DOOR ASSEMBLY – Baggage 1 x x NM!
-2 13838-08 FRAME ASSEMBLY – Door 1 x x NM!
-3 473-130 A LOCK ASSEMBLY (13014-00) 1 x x NM!
752-301 B LOCK ASSEMBLY – With keys 1 x x NM!
-4 S2249-2 MOULDING – Rubber, door seal 7’ x x 0.73
-5 13866-00 CHANNEL – Trim, baggage compartment door, 1 x x NM!
top
-6 13867-00 CHANNEL – Trim, baggage compartment door, 1 x x NM!
rear
-7 13865-00 CHANNEL – Trim, baggage compartment door, 1 x x NM!
front
-8 U80012-004 BUSHING – Baggage compartment door spring 1 x x 7.45
installation
-9 108-3002268 SPRING – Baggage compartment door 1 x x 44.89
installation
-10 14171-00 PLATE – Latch, baggage compartment door 1 x x NM!
striker

Date of Issue – March 1954 46
