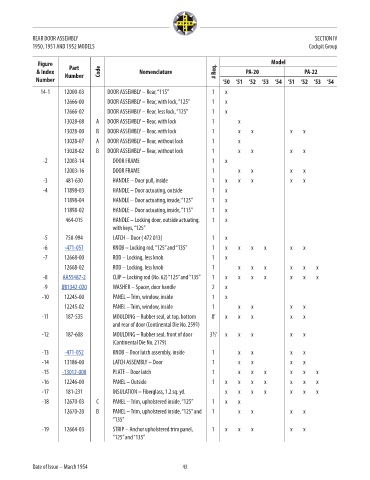

REAR DOOR ASSEMBLY SECTION IV
1950, 1951 AND 1952 MODELS Cockpit Group

Figure Model
& Index Part Code Nomenclature # Req. PA-20 PA-22
Number Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
14-1 12000-03 DOOR ASSEMBLY – Rear, “115” 1 x NM!
12666-00 DOOR ASSEMBLY – Rear, with lock, “125” 1 x NM!
12666-02 DOOR ASSEMBLY – Rear, less lock, “125” 1 x NM!
13028-08 A DOOR ASSEMBLY – Rear, with lock 1 x NM!
13028-00 B DOOR ASSEMBLY – Rear, with lock 1 x x x x NM!
13028-07 A DOOR ASSEMBLY – Rear, without lock 1 x NM!
13028-02 B DOOR ASSEMBLY – Rear, without lock 1 x x x x NM!
-2 12003-14 DOOR FRAME 1 x NM!
12003-16 DOOR FRAME 1 x x x x NM!
-3 481-630 HANDLE – Door pull, inside 1 x x x x x NM!
-4 11898-03 HANDLE – Door actuating, outside 1 x NM!
11898-04 HANDLE – Door actuating, inside, “125” 1 x NM!
11898-02 HANDLE – Door actuating, inside, “115” 1 x NM!
464-015 HANDLE – Locking door, outside actuating, 1 x NM!
with keys, “125”
-5 750-994 LATCH – Door ( 472 013) 1 x NM!
-6 -471-051 KNOB – Locking rod, “125” and “135” 1 x x x x x x 2.19
-7 12668-00 ROD – Locking, less knob 1 x NM!
12668-02 ROD – Locking, less knob 1 x x x x x x NM!
-8 AA55487-2 CLIP – Locking rod (No. 62) “125” and “135” 1 x x x x x x x 0.58
-9 U81342-020 WASHER – Spacer, door handle 2 x 3.32
-10 12245-00 PANEL – Trim, window, inside 1 x NM!
12245-02 PANEL – Trim, window, inside 1 x x x x NM!
-11 187-535 MOULDING – Rubber seal, at top, bottom 8’ x x x x x NM!
and rear of door (Continental Die No. 2591)
-12 187-608 MOULDING – Rubber seal, front of door 3 ⁄2’ x x x x x NM!
1
(Continental Die No. 2179)
-13 -471-052 KNOB – Door latch assembly, inside 1 x x x x 5.39
-14 13186-00 LATCH ASSEMBLY – Door 1 x x x x NM!
-15 -13012-000 PLATE – Door latch 1 x x x x x x 62.05
-16 12246-00 PANEL – Outside 1 x x x x x x x NM!
-17 181-231 INSULATION – Fiberglass, 1.2 sq. yd. x x x x x x x NM!
-18 12670-03 C PANEL – Trim, upholstered inside, “125” 1 x x NM!
12670-20 B PANEL – Trim, upholstered inside, “125” and 1 x x x x NM!
“135”
-19 12664-03 STRIP – Anchor upholstered trim panel, 1 x x x x x NM!
“125” and “135”

Date of Issue – March 1954 43
