P. 75
SECTION IV
BAGGAGE COMPARTMENT INSTALLATION Cockpit Group
Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
16-11 13889-00 PANEL – Hat shelf, rear 1 x x NM!
-12 13886-00 SHELF ASSEMBLY – Hat baggage compartment 1 x x NM!
-13 454 917 CLIP – Wire, hat shelf installation (No. 1-LC) 10 x x NM!

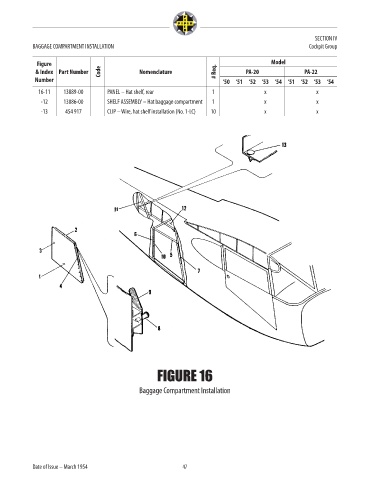

FIGURE 16
Baggage Compartment Installation
Date of Issue – March 1954 47
