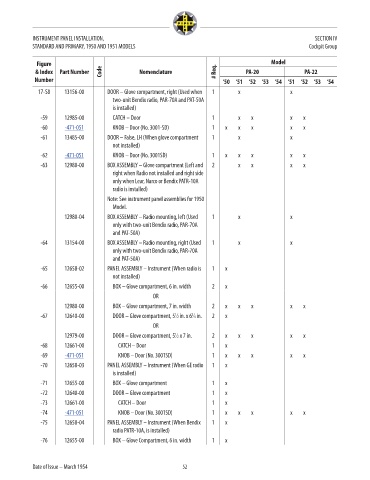

INSTRUMENT PANEL INSTALLATION, SECTION IV
STANDARD AND PRIMARY, 1950 AND 1951 MODELS Cockpit Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
17-58 13156-00 DOOR – Glove compartment, right (Used when 1 x x NM!
two-unit Bendix radio, PAR-70A and PAT-50A
is installed)
-59 12985-00 CATCH – Door 1 x x x x NM!

-60 -471-051 KNOB – Door (No. 3001-SD) 1 x x x x x 2.19
-61 13485-00 DOOR – False, LH (When glove compartment 1 x x NM!
not installed)
-62 -471-051 KNOB – Door (No. 3001SD) 1 x x x x x 2.19
-63 12980-00 BOX ASSEMBLY – Glove compartment (Left and 2 x x x x NM!
right when Radio not installed and right side
only when Lear, Narco or Bendix PATR-10A
radio is installed)
Note: See instrument panel assemblies for 1950 x
Model.
12980-04 BOX ASSEMBLY – Radio mounting, left (Used 1 x x NM!
only with two-unit Bendix radio, PAR-70A
and PAT-50A)
-64 13154-00 BOX ASSEMBLY – Radio mounting, right (Used 1 x x NM!
only with two-unit Bendix radio, PAR-70A
and PAT-50A)
-65 12658-02 PANEL ASSEMBLY – Instrument (When radio is 1 x NM!
not installed)
-66 12655-00 BOX – Glove compartment, 6 in. width 2 x NM!
OR x
12980-00 BOX – Glove compartment, 7 in. width 2 x x x x x NM!
-67 12640-00 DOOR – Glove compartment, 5 ⁄2 in. x 6 ⁄4 in. 2 x NM!
3
1
OR x
12979-00 DOOR – Glove compartment, 5 ⁄2 x 7 in. 2 x x x x x NM!
1
-68 12661-00 CATCH – Door 1 x NM!
-69 -471-051 KNOB – Door (No. 3001SD) 1 x x x x x 2.19
-70 12658-03 PANEL ASSEMBLY – Instrument (When GE radio 1 x NM!
is installed)
-71 12655-00 BOX – Glove compartment 1 x NM!
-72 12640-00 DOOR – Glove compartment 1 x NM!
-73 12661-00 CATCH – Door 1 x NM!
-74 -471-051 KNOB – Door (No. 3001SD) 1 x x x x x 2.19
-75 12658-04 PANEL ASSEMBLY – Instrument (When Bendix 1 x NM!
radio PATR-10A, is installed)
-76 12655-00 BOX – Glove Compartment, 6 in. width 1 x NM!
