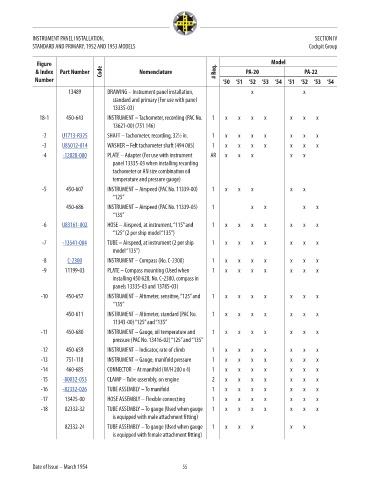

Page 83 - Piper PA-20 Interactive Digital Parts Catalog

INSTRUMENT PANEL INSTALLATION, SECTION IV
STANDARD AND PRIMARY, 1952 AND 1953 MODELS Cockpit Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
13489 DRAWING – Instrument panel installation, x x NM!
standard and primary (For use with panel
13335-03)
18-1 450-643 INSTRUMENT – Tachometer, recording (PAC No. 1 x x x x x x x NM!
13621-00) (751 146)
-2 U1713-R325 SHAFT – Tachometer, recording, 32 ⁄2 in. 1 x x x x x x x 165.41
1
-3 U85012-014 WASHER – Felt tachometer shaft (494 005) 1 x x x x x x x 4.67
-4 -12828-000 PLATE – Adapter (For use with instrument AR x x x x x 26.44
panel 13335-03 when installing recording
tachometer or AN size combination oil
temperature and pressure gauge)
-5 450-607 INSTRUMENT – Airspeed (PAC No. 11339-00) 1 x x x x x NM!
“125”
450-686 INSTRUMENT – Airspeed (PAC No. 11339-05) 1 x x x x NM!
“135”
-6 U83161-002 HOSE – Airspeed, at instrument, “115” and 1 x x x x x x x 5.91
“125” (2 per ship model “135”)
-7 -13541-004 TUBE – Airspeed, at instrument (2 per ship 1 x x x x x x x 13.54
model “135”)
-8 C-2300 INSTRUMENT – Compass (No. C-2300) 1 x x x x x x x 238.25
-9 11199-03 PLATE – Compass mounting (Used when 1 x x x x x x x NM!
installing 450 628, No. C-2300, compass in
panels 13335-03 and 13785-03)
-10 450-657 INSTRUMENT – Altimeter, sensitive, “125” and 1 x x x x x x x NM!
“135”
450-611 INSTRUMENT – Altimeter, standard (PAC No. 1 x x x x x x x NM!
11343-00) “125” and “135”
-11 450-680 INSTRUMENT – Gauge, oil temperature and 1 x x x x x x x NM!
pressure (PAC No. 13416-02) “125” and “135”
-12 450-659 INSTRUMENT – Indicator, rate of climb 1 x x x x x x x NM!
-13 751-118 INSTRUMENT – Gauge, manifold pressure 1 x x x x x x x NM!
-14 460-685 CONNECTOR – At manifold (W/H 200 x 4) 1 x x x x x x x NM!
-15 -80032-053 CLAMP – Tube assembly, on engine 2 x x x x x x x 16.93
-16 -82332-026 TUBE ASSEMBLY – To manifold 1 x x x x x x x 80.85

-17 13425-00 HOSE ASSEMBLY – Flexible connecting 1 x x x x x x x NM!
-18 82332-32 TUBE ASSEMBLY – To gauge (Used when gauge 1 x x x x x x x NM!
is equipped with male attachment fitting)
82332-24 TUBE ASSEMBLY – To gauge (Used when gauge 1 x x x x x NM!
is equipped with female attachment fitting)

Date of Issue – March 1954 55
