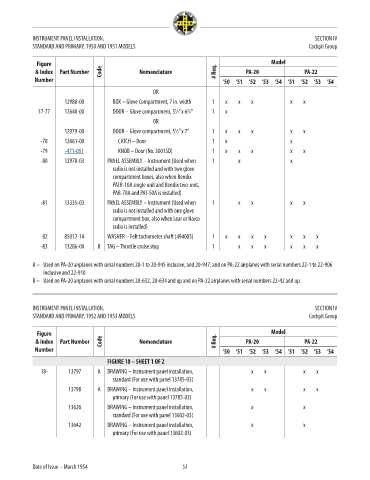

INSTRUMENT PANEL INSTALLATION, SECTION IV
STANDARD AND PRIMARY, 1950 AND 1951 MODELS Cockpit Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
OR x
12980-00 BOX – Glove Compartment, 7 in. width 1 x x x x x NM!
17-77 12640-00 DOOR – Glove compartment, 5 ⁄2” x 6 ⁄4” 1 x NM!
3
1
OR x
1
12979-00 DOOR – Glove compartment, 5 ⁄2” x 7” 1 x x x x x NM!
-78 12661-00 CATCH – Door 1 x x NM!
-79 -471-051 KNOB – Door (No. 3001SD) 1 x x x x x 2.19
-80 12978-03 PANEL ASSEMBLY – Instrument (Used when 1 x x NM!
radio is not installed and with two glove
compartment boxes, also when Bendix
PATR-10A single unit and Bendix two-unit,
PAR-70A and PAT-50A is installed)
-81 13335-03 PANEL ASSEMBLY – Instrument (Used when 1 x x x x NM!
radio is not installed and with one glove
compartment box, also when Lear or Narco
radio is installed)
-82 85012-14 WASHER – Felt tachometer shaft (494005) 1 x x x x x x x NM!
-83 13286-00 B TAG – Throttle cruise stop 1 x x x x x x NM!

A – Used on PA-20 airplanes with serial numbers 20-1 to 20-945 inclusive, and 20-947; and on PA-22 airplanes with serial numbers 22-1 to 22-906
inclusive and 22-910
B – Used on PA-20 airplanes with serial numbers 20-632, 20-634 and up and on PA-22 airplanes with serial numbers 22-42 and up.

INSTRUMENT PANEL INSTALLATION, SECTION IV
STANDARD AND PRIMARY, 1952 AND 1953 MODELS Cockpit Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price

FIGURE 18 – SHEET 1 OF 2
18- 13797 A DRAWING – Instrument panel installation, x x x x NM!
standard (For use with panel 13785-03)
13798 A DRAWING – Instrument panel installation, x x x x NM!
primary (For use with panel 13785-03)
13626 DRAWING – Instrument panel installation, x x NM!
standard (For use with panel 13602-03)
13642 DRAWING – Instrument panel installation, x x NM!
primary (For use with panel 13602-03)

Date of Issue – March 1954 53
