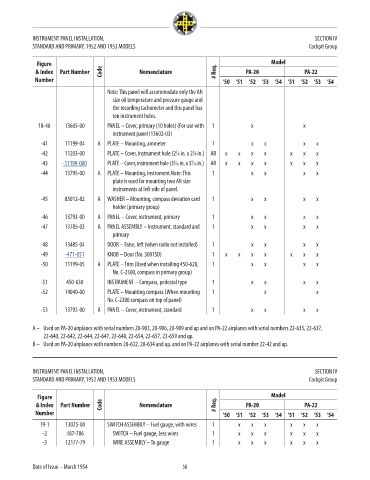

INSTRUMENT PANEL INSTALLATION, SECTION IV
STANDARD AND PRIMARY, 1952 AND 1953 MODELS Cockpit Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
Note: This panel will accommodate only the AN
size oil temperature and pressure gauge and
the recording tachometer and this panel has
ten instrument holes.
18-40 13605-00 PANEL – Cover, primary (10 holes) (For use with 1 x x NM!
instrument panel (13602-03)
-41 11199-04 A PLATE – Mounting, ammeter 1 x x x x NM!
-42 11203-00 PLATE – Cover, instrument hole (2 ⁄8 in. x 2 ⁄8 in.) AR x x x x x x x NM!
3
3
-43 -11199-000 PLATE – Cover, instrument hole (3 ⁄16 in. x 3 ⁄16 in.) AR x x x x x x x 46.98
3
3
-44 13795-00 A PLATE – Mounting, instrument Note: This 1 x x x x NM!
plate is used for mounting two AN size
instruments at left side of panel.
-45 85012-82 A WASHER – Mounting, compass deviation card 1 x x x x NM!
holder (primary group)
-46 13793-00 A PANEL – Cover, instrument, primary 1 x x x x NM!
-47 13785-03 A PANEL ASSEMBLY – Instrument, standard and 1 x x x x NM!
primary
-48 13485-04 DOOR – False, left (when radio not installed) 1 x x x x NM!
-49 -471-051 KNOB – Door (No. 3001SD) 1 x x x x x x x 2.19
-50 11199-05 A PLATE – Trim (Used when installing 450-628, 1 x x x x NM!
No. C-2300, compass in primary group)
-51 450-630 INSTRUMENT – Compass, pedestal type 1 x x x x NM!
-52 14040-00 PLATE – Mounting compass (When mounting 1 x x NM!
No. C-2300 compass on top of panel)
-53 13792-00 A PANEL – Cover, instrument, standard 1 x x x x NM!

A – Used on PA-20 airplanes with serial numbers 20-903, 20-906, 20-909 and up and on PA-22 airplanes with serial numbers 22-635, 22-637,
22-640, 22-642, 22-644, 22-647, 22-648, 22-654, 22-657, 22-659 and up.
B – Used on PA-20 airplanes with numbers 20-632, 20-634 and up, and on PA-22 airplanes with serial number 22-42 and up.

INSTRUMENT PANEL INSTALLATION, SECTION IV
STANDARD AND PRIMARY, 1952 AND 1953 MODELS Cockpit Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price

19-1 13025-00 SWITCH ASSEMBLY – Fuel gauge, with wires 1 x x x x x x NM!
-2 487-786 SWITCH – Fuel gauge, Jess wires 1 x x x x x x NM!
-3 12177-79 WIRE ASSEMBLY – To gauge 1 x x x x x x NM!

Date of Issue – March 1954 58
