P. 90
NOTE: See Standard and Primary Instrument Panel
Installations, Figure 18, sheet 1, 2 of 2 sheets and
Figure 19 for all parts not itemized on this figure.

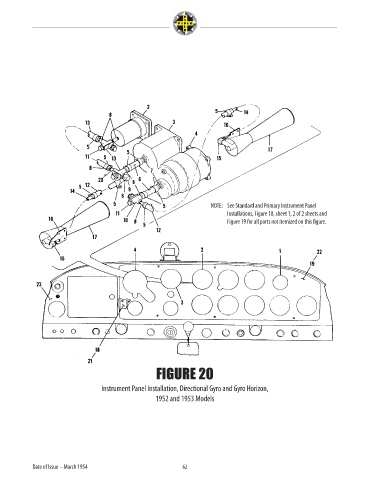

FIGURE 20
Instrument Panel Installation, Directional Gyro and Gyro Horizon,
1952 and 1953 Models
Date of Issue – March 1954 62
