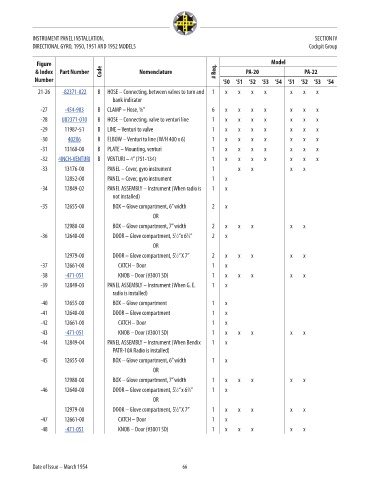

INSTRUMENT PANEL INSTALLATION, SECTION IV
DIRECTIONAL GYRO, 1950, 1951 AND 1952 MODELS Cockpit Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
21-26 -82371-022 B HOSE – Connecting, between valves to turn and 1 x x x x x x x 28.73
bank indicator
-27 -454-903 B CLAMP – Hose, ⁄8” 6 x x x x x x x 2.43
5
-28 U82371-010 B HOSE – Connecting, valve to venturi line 1 x x x x x x x 23.8
-29 11987-51 B LINE – Venturi to valve 1 x x x x x x x NM!
-30 402X6 B ELBOW – Venturi to line (W/H 400 x 6) 1 x x x x x x x 7.94
-31 13160-00 B PLATE – Mounting, venturi 1 x x x x x x x NM!
-32 4INCH-VENTURI B VENTURI – 4” (751-134) 1 x x x x x x x 78.82
-33 13176-00 PANEL – Cover, gyro instrument 1 x x x x NM!
12852-00 PANEL – Cover, gyro instrument 1 x NM!
-34 12849-02 PANEL ASSEMBLY – Instrument (When radio is 1 x NM!
not installed)
-35 12655-00 BOX – Glove compartment, 6” width 2 x NM!
OR x
12980-00 BOX – Glove compartment, 7” width 2 x x x x x NM!
-36 12640-00 DOOR – Glove compartment, 5 ⁄2”x 6 ⁄4” 2 x NM!
1
3
OR x
12979-00 DOOR – Glove compartment, 5 ⁄2” X 7” 2 x x x x x NM!
1
-37 12661-00 CATCH – Door 1 x NM!
-38 -471-051 KNOB – Door (#3001 SD) 1 x x x x x 2.19
-39 12849-03 PANEL ASSEMBLY – Instrument (When G. E. 1 x NM!
radio is installed)
-40 12655-00 BOX – Glove compartment 1 x NM!
-41 12640-00 DOOR – Glove compartment 1 x NM!
-42 12661-00 CATCH – Door 1 x NM!
-43 -471-051 KNOB – Door (#3001 SD) 1 x x x x x 2.19
-44 12849-04 PANEL ASSEMBLY – Instrument (When Bendix 1 x NM!
PATR-10A Radio is installed)

-45 12655-00 BOX – Glove compartment, 6” width 1 x NM!
OR x
12980-00 BOX – Glove compartment, 7” width 1 x x x x x NM!
-46 12640-00 DOOR – Glove compartment, 5 ⁄2” x 6 ⁄4” 1 x NM!
1
3
OR x
12979-00 DOOR – Glove compartment, 5 ⁄2” X 7” 1 x x x x x NM!
1
-47 12661-00 CATCH – Door 1 x NM!
-48 -471-051 KNOB – Door (#3001 SD) 1 x x x x x 2.19

Date of Issue – March 1954 66
