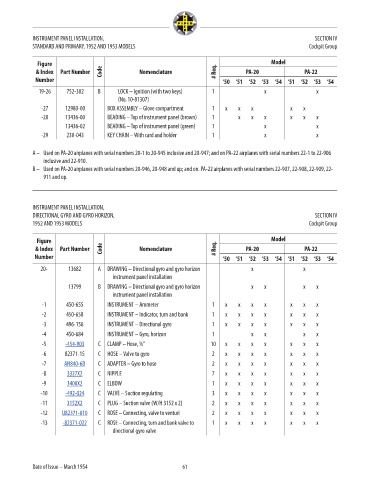

INSTRUMENT PANEL INSTALLATION, SECTION IV
STANDARD AND PRIMARY, 1952 AND 1953 MODELS Cockpit Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
19-26 752-302 B LOCK – Ignition (with two keys) 1 x x NM!
(No. 10-81307)
-27 12980-00 BOX ASSEMBLY – Glove compartment 1 x x x x x NM!
-28 13436-00 BEADING – Top of instrument panel (brown) 1 x x x x x x NM!
13436-02 BEADING – Top of instrument panel (green) 1 x x NM!
-29 230-043 KEY CHAIN – With card and holder 1 x x NM!

A – Used on PA-20 airplanes with serial numbers 20-1 to 20-945 inclusive and 20-947; and on PA-22 airplanes with serial numbers 22-1 to 22-906
inclusive and 22-910.
B – Used on PA-20 airplanes with serial numbers 20-946, 20-948 and up; and on. PA-22 airplanes with serial numbers 22-907, 22-908, 22-909, 22-
911 and up.

INSTRUMENT PANEL INSTALLATION,
DIRECTIONAL GYRO AND GYRO HORIZON, SECTION IV
1952 AND 1953 MODELS Cockpit Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price

20- 13682 A DRAWING – Directional gyro and gyro horizon x x NM!
instrument panel installation
13799 B DRAWING – Directional gyro and gyro horizon x x x x NM!
instrument panel installation
-1 450-655 INSTRUMENT – Ammeter 1 x x x x x x x NM!
-2 450-658 INSTRUMENT – Indicator, turn and bank 1 x x x x x x x NM!
-3 496-156 INSTRUMENT – Directional gyro 1 x x x x x x x NM!
-4 450-684 INSTRUMENT – Gyro, horizon 1 x x x x NM!
-5 -454-903 C CLAMP – Hose, ⁄8” 10 x x x x x x x 2.43
5
-6 82371-15 C HOSE – Valve to gyro 2 x x x x x x x NM!
-7 AN840-6D C ADAPTER – Gyro to hose 2 x x x x x x x 11.96
-8 3327X2 C NIPPLE 7 x x x x x x x 2.64
-9 3400X2 C ELBOW 1 x x x x x x x 2.93
-10 -492-024 C VALVE – Suction regulating 3 x x x x x x x 24.95
-11 3152X2 C PLUG – Suction valve (W/H 3152 x 2) 2 x x x x x x x 1.42
-12 U82371-010 C ROSE – Connecting, valve to venturi 2 x x x x x x x 23.8
-13 -82371-022 C ROSE – Connecting, turn and bank valve to 1 x x x x x x x 28.73
directional gyro valve

Date of Issue – March 1954 61
