NOTE: See Standard and Primary Instrument
Date of Issue – March 1954
Panel Installations Figure 17 for 1950-51
model and Figure 18, sheet 1, 2 of 2 sheets
and Figure 19 for 1952 model for all parts
not itemized on this figure.

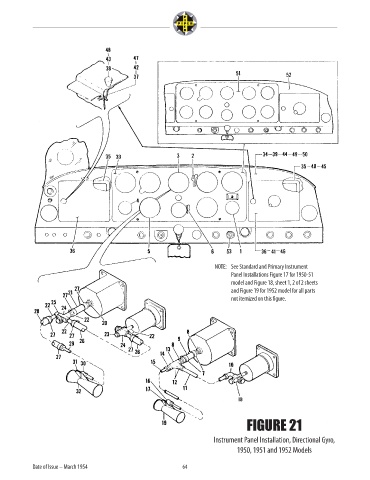

FIGURE 21
Instrument Panel Installation, Directional Gyro,
1950, 1951 and 1952 Models
64
