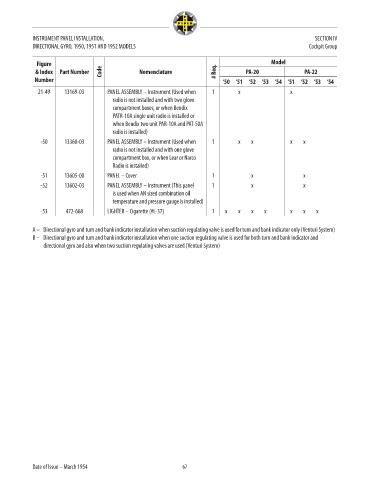

INSTRUMENT PANEL INSTALLATION, SECTION IV
DIRECTIONAL GYRO, 1950, 1951 AND 1952 MODELS Cockpit Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
21-49 13169-03 PANEL ASSEMBLY – Instrument (Used when 1 x x NM!
radio is not installed and with two glove
compartment boxes, or when Bendix
PATR-10A single unit radio is installed or
when Bendix two unit PAR-10A and PAT-50A
radio is installed)
-50 13360-03 PANEL ASSEMBLY – Instrument (Used when 1 x x x x NM!
radio is not installed and with one glove
compartment box, or when Lear or Narco
Radio is installed)
-51 13605-00 PANEL – Cover 1 x x NM!
-52 13602-03 PANEL ASSEMBLY – Instrument (This panel 1 x x NM!
is used when AN sized combination oil
temperature and pressure gauge is installed)
-53 472-668 LIGHTER – Cigarette (#L-37) 1 x x x x x x x NM!

A – Directional gyro and turn and bank indicator installation when suction regulating valve is used for turn and bank indicator only (Venturi System)
B – Directional gyro and turn and bank indicator installation when one suction regulating valve is used for both turn and bank indicator and
directional gyro and also when two suction regulating valves are used (Venturi System)

Date of Issue – March 1954 67
