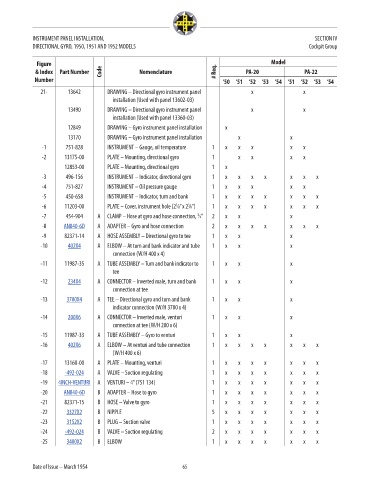

P. 93

INSTRUMENT PANEL INSTALLATION,                                                               SECTION IV
            DIRECTIONAL GYRO, 1950, 1951 AND 1952 MODELS                                               Cockpit Group

             Figure                                                                        Model
             & Index  Part Number  Code        Nomenclature             # Req.    PA-20               PA-22
             Number                                                        ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54                         Price
              21-       13642        DRAWING – Directional gyro instrument panel    x                x                           NM!
                                      installation (Used with panel 13602-03)
                        13490        DRAWING – Directional gyro instrument panel    x                x                           NM!
                                      installation (Used with panel 13360-03)

                        12849        DRAWING – Gyro instrument panel installation  x                                             NM!
                        13170        DRAWING – Gyro instrument panel installation  x             x                               NM!
               -1      751-828       INSTRUMENT – Gauge, oil temperature  1  x  x   x            x   x                           NM!
               -2     13175-00       PLATE – Mounting, directional gyro  1      x   x            x   x                           NM!
                      12853-00       PLATE – Mounting, directional gyro  1  x                                                    NM!
               -3      496-156       INSTRUMENT – Indicator, directional gyro  1  x  x  x  x     x   x    x                      NM!
               -4      751-827       INSTRUMENT – Oil pressure gauge   1    x   x   x            x   x                           NM!
               -5      450-658       INSTRUMENT – Indicator, turn and bank  1  x  x  x  x        x   x    x                      NM!
                                                           3
                                                               3
               -6     11203-00       PLATE – Cover, instrument hole (2 ⁄8” x 2 ⁄8”)  1  x  x  x  x  x  x  x                      NM!
               -7      454-904   A   CLAMP – Hose at gyro and hose connection,  ⁄4”  2  x  x     x                               NM!
                                                                  3
               -8     AN840-6D   A   ADAPTER – Gyro and hose connection  2  x   x   x   x        x   x    x                      11.96
               -9     82371-14   A   HOSE ASSEMBLY – Directional gyro to tee  1  x  x            x                               NM!
              -10      402X4     A   ELBOW – At turn and bank indicator and tube   1  x  x       x                               5.08
                                      connection (W/H 400 x 4)
              -11     11987-35   A   TUBE ASSEMBLY – Turn and bank indicator to   1  x  x        x                               NM!
                                      tee
              -12      234X4     A   CONNECTOR – Inverted male, turn and bank   1  x  x          x                               7.9
                                      connection at tee
              -13      3700X4    A   TEE – Directional gyro and turn and bank   1  x  x          x                               1
                                      indicator connection (W/H 3700 x 4)

              -14      200X6     A   CONNECTOR – Inverted male, venturi   1  x  x                x                               2.76
                                      connection at tee (W/H 200 x 6)
              -15     11987-33   A   TUBE ASSEMBLY – Gyro to venturi   1    x   x                x                               NM!
              -16      402X6     A   ELBOW – At venturi and tube connection    1  x  x  x  x     x   x    x                      7.94
                                      (W/H 400 x 6)
              -17     13160-00   A   PLATE – Mounting, venturi         1    x   x   x   x        x   x    x                      NM!
              -18     -492-024   A   VALVE – Suction regulating        1    x   x   x   x        x   x    x                      24.95
              -19   4INCH-VENTURI  A  VENTURI – 4” (751 134)           1    x   x   x   x        x   x    x                      78.82
              -20     AN840-6D   B   ADAPTER – Hose to gyro            1    x   x   x   x        x   x    x                      11.96
              -21     82371-15   B   HOSE – Valve to gyro              1    x   x   x   x        x   x    x                      NM!
              -22      3327X2    B   NIPPLE                            5    x   x   x   x        x   x    x                      2.64
              -23      3152X2    B   PLUG – Suction valve              1    x   x   x   x        x   x    x                      1.42
              -24     -492-024   B   VALVE – Suction regulating        2    x   x   x   x        x   x    x                      24.95
              -25      3400X2    B   ELBOW                             1    x   x   x   x        x   x    x                      2.93



            Date of Issue – March 1954                       65
