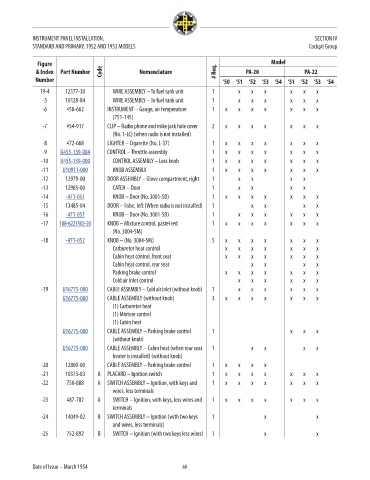

INSTRUMENT PANEL INSTALLATION, SECTION IV
STANDARD AND PRIMARY, 1952 AND 1953 MODELS Cockpit Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
19-4 12177-30 WIRE ASSEMBLY – To fuel tank unit 1 x x x x x x NM!
-5 10128-84 WIRE ASSEMBLY – To fuel tank unit 1 x x x x x x NM!
-6 450-662 INSTRUMENT – Gauge, air temperature 1 x x x x x x x NM!
(751-145)
-7 454-917 CLIP – Radio phone and mike jack hole cover 2 x x x x x x x NM!
(No. 1-LC) (when radio is not installed)
-8 472-668 LIGHTER – Cigarette (No. L-37) 1 x x x x x x x NM!
-9 U455-139-004 CONTROL – Throttle assembly 1 x x x x x x x 459.53
-10 U455-139-000 CONTROL ASSEMBLY – Less knob 1 x x x x x x x 423.48
-11 U10911-000 KNOB ASSEMBLY 1 x x x x x x x 12.44
-12 12979-00 DOOR ASSEMBLY – Glove compartment, right 1 x x x x NM!
-13 12985-00 CATCH – Door 1 x x x x NM!
-14 -471-051 KNOB – Door (No. 3001-SD) 1 x x x x x x x 2.19
-15 13485-04 DOOR – False, left (When radio is not installed) 1 x x x x NM!
-16 -471-051 KNOB – Door (No. 3001-SD) 1 x x x x x x 2.19
-17 108-6221502-20 KNOB – Mixture control, pastel red 1 x x x x x x x 6.98
(No. 3004-SM)
-18 -471-052 KNOB – (No. 3004-SM) 5 x x x x x x x 5.39
Carburetor heat control x x x x x x x
Cabin heat control, front seat x x x x x x x
Cabin heat control, rear seat x x x x
Parking brake control x x x x x x x
Cold air inlet control x x x x x x
-19 U16775-000 CABLE ASSEMBLY – Cold air inlet (without knob) 1 x x x x x x 77.86
U16775-000 CABLE ASSEMBLY (without knob) 3 x x x x x x x 77.86
(1) Carburetor heat
(1) Mixture control
(1) Cabin heat
U16775-000 CABLE ASSEMBLY – Parking brake control 1 x x x 77.86
(without knob)
U16775-000 CABLE ASSEMBLY – Cabin heat (when rear seat 1 x x x x 77.86
heater is installed) (without knob)
-20 12800-00 CABLE ASSEMBLY – Parking brake control 1 x x x x NM!
-21 10373-03 A PLACARD – Ignition switch 1 x x x x x x x NM!
-22 750-888 A SWITCH ASSEMBLY – Ignition, with keys and 1 x x x x x x x NM!
wires, less terminals
-23 487-782 A SWITCH – Ignition, with keys, less wires and 1 x x x x x x x NM!
terminals
-24 14049-02 B SWITCH ASSEMBLY – Ignition (with two keys 1 x x NM!
and wires, less terminals)
-25 752-892 B SWITCH – Ignition (with two keys less wires) 1 x x NM!

Date of Issue – March 1954 60
