P. 100
SECTION IV
LITTER INSTALLATION Cockpit Group
Figure Model
& Index Part Code Nomenclature # Req. PA-20 PA-22
Number Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
24- 12733 DRAWING x x x x x NM!
14187 DRAWING x x NM!
-1 751-161 GRAN LITTER 1 x x x x x x x NM!
-2 12732-04 LITTER STRAP ASSEMBLY 1 x x x x x x x NM!
-3 12732-03 LITTER STRAP ASSEMBLY 1 x x x x x x x NM!
-4 12732-02 LITTER STRAP ASSEMBLY – Double 1 x x x x x NM!
-14186-000 LITTER STRAP ASSEMBLY 1 x x 22.38
-5 12730-02 LITTER FITTING – Strap assembly 2 x x x x x NM!
-6 U80002-041 LITTER CLAMP 2 x x x x x 22.3
-7 12732-05 LITTER STRAP ASSEMBLY 1 x x NM!

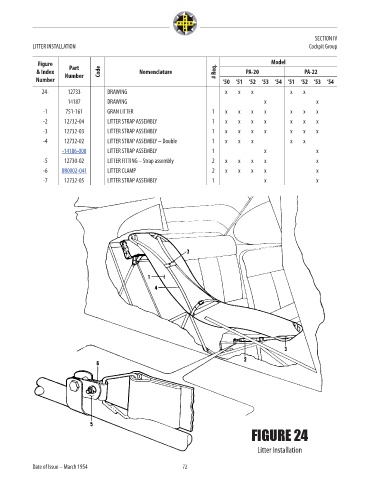

FIGURE 24
Litter Installation
Date of Issue – March 1954 72
