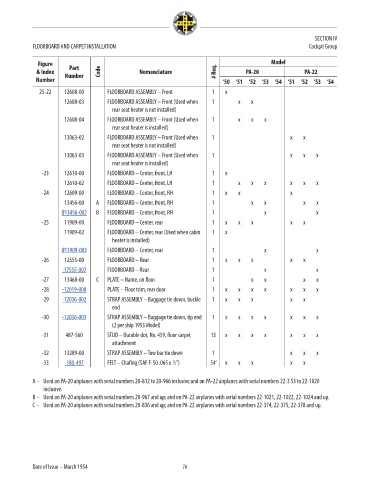

SECTION IV
FLOORBOARD AND CARPET INSTALLATION Cockpit Group

Figure Model
& Index Part Code Nomenclature # Req. PA-20 PA-22
Number Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
25-22 12608-00 FLOORBOARD ASSEMBLY – Front 1 x NM!
12608-03 FLOORBOARD ASSEMBLY – Front (Used when 1 x x NM!
rear seat heater is not installed)
12608-04 FLOORBOARD ASSEMBLY – Front (Used when 1 x x x NM!
rear seat heater is installed)
13063-02 FLOORBOARD ASSEMBLY – Front (Used when 1 x x NM!
rear seat heater is not installed)
13063-03 FLOORBOARD ASSEMBLY – Front (Used when 1 x x x NM!
rear seat heater is installed)
-23 12610-00 FLOORBOARD – Center, front, LH 1 x NM!
12610-02 FLOORBOARD – Center, front, LH 1 x x x x x x NM!
-24 12609-00 FLOORBOARD – Center, front, RH 1 x x x NM!
13456-00 A FLOORBOARD – Center, front, RH 1 x x x x NM!
U13456-002 B FLOORBOARD – Center, front, RH 1 x x 226.61
-25 11909-00 FLOORBOARD – Center, rear 1 x x x x x NM!
11909-02 FLOORBOARD – Center, rear (Used when cabin 1 x NM!
heater is installed)
U11909-003 FLOORBOARD – Center, rear 1 x x 121.09
-26 12555-00 FLOORBOARD – Rear 1 x x x x x NM!
-12555-002 FLOORBOARD – Rear 1 x x 88.18
-27 13468-00 C PLATE – Name, on floor 1 x x x x NM!
-28 -12019-000 PLATE – Floor trim, rear door 1 x x x x x x x 15.92
-29 -12036-002 STRAP ASSEMBLY – Baggage tie down, buckle 1 x x x x x 19.93
end

-30 -12036-003 STRAP ASSEMBLY – Baggage tie down, tip end 1 x x x x x x x 20.92
(2 per ship 1953 Model)
-31 487-560 STUD – Durable dot, No. 459, floor carpet 13 x x x x x x x NM!
attachment
-32 13289-00 STRAP ASSEMBLY – Tow bar tie down 1 x x x NM!
1
-33 -180-497 FELT – Chafing (SAE F-50 .065 x ⁄2”) 54’ x x x x x 4.67

A – Used on PA-20 airplanes with serial numbers 20-812 to 20-966 inclusive;and on PA-22 airplanes with serial numbers 22-3 53 to 22-1020
inclusive.
B – Used on PA-20 airplanes with serial numbers 20-967 and up; and on PA-22 airplanes with serial numbers 22-1021, 22-1022, 22-1024 and up.
C – Used on PA-20 airplanes with serial numbers 20-836 and up; and on PA-22 airplanes with serial numbers 22-374, 22-375, 22-378 and up.

Date of Issue – March 1954 76
