P. 102

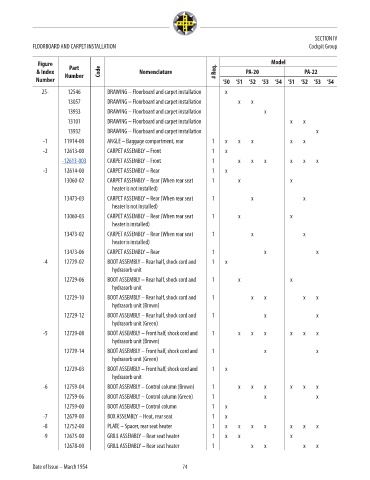

SECTION IV
FLOORBOARD AND CARPET INSTALLATION Cockpit Group
Figure Model
& Index Part Code Nomenclature # Req. PA-20 PA-22
Number Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
25- 12546 DRAWING – Floorboard and carpet installation x NM!
13057 DRAWING – Floorboard and carpet installation x x NM!
13933 DRAWING – Floorboard and carpet installation x NM!
13101 DRAWING – Floorboard and carpet installation x x NM!
13932 DRAWING – Floorboard and carpet installation x NM!
-1 11914-00 ANGLE – Baggage compartment, rear 1 x x x x x NM!
-2 12613-00 CARPET ASSEMBLY – Front 1 x NM!
-12613-003 CARPET ASSEMBLY – Front 1 x x x x x x 318
-3 12614-00 CARPET ASSEMBLY – Rear 1 x NM!
13060-02 CARPET ASSEMBLY – Rear (When rear seat 1 x x NM!
heater is not installed)
13473-03 CARPET ASSEMBLY – Rear (When rear seat 1 x x NM!
heater is not installed)
13060-03 CARPET ASSEMBLY – Rear (When rear seat 1 x x NM!
heater is installed)
13473-02 CARPET ASSEMBLY – Rear (When rear seat 1 x x NM!
heater is installed)
13473-06 CARPET ASSEMBLY – Rear 1 x x NM!
-4 12729-02 BOOT ASSEMBLY – Rear half, shock cord and 1 x NM!
hydrasorb unit
12729-06 BOOT ASSEMBLY – Rear half, shock cord and 1 x x NM!
hydrasorb unit
12729-10 BOOT ASSEMBLY – Rear half, shock cord and 1 x x x x NM!
hydrasorb unit (Brown)
12729-12 BOOT ASSEMBLY – Rear half, shock cord and 1 x x NM!
hydrasorb unit (Green)
-5 12729-08 BOOT ASSEMBLY – Front half, shock cord and 1 x x x x x x NM!
hydrasorb unit (Brown)
12729-14 BOOT ASSEMBLY – Front half, shock cord and 1 x x NM!
hydrasorb unit (Green)
12729-03 BOOT ASSEMBLY – Front half, shock cord and 1 x NM!
hydrasorb unit
-6 12759-04 BOOT ASSEMBLY – Control column (Brown) 1 x x x x x x NM!
12759-06 BOOT ASSEMBLY – Control column (Green) 1 x x NM!
12759-00 BOOT ASSEMBLY – Control column 1 x NM!
-7 12679-00 BOX ASSEMBLY – Heat, rear seat 1 x NM!
-8 12752-00 PLATE – Spacer, rear seat heater 1 x x x x x x x NM!
-9 12675-00 GRILL ASSEMBLY – Rear seat heater 1 x x x NM!
12678-00 GRILL ASSEMBLY – Rear seat heater 1 x x x x NM!
Date of Issue – March 1954 74
