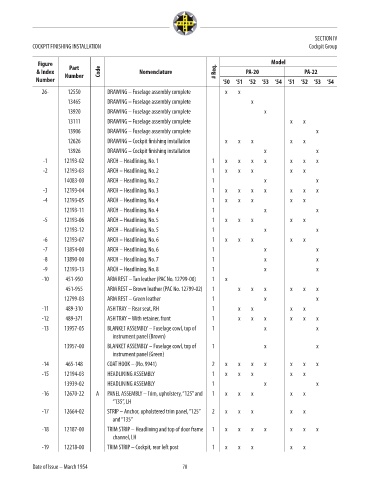

Page 106 - Piper PA-20 Interactive Digital Parts Catalog

SECTION IV
COCKPIT FINISHING INSTALLATION Cockpit Group

Figure Model
& Index Part Code Nomenclature # Req. PA-20 PA-22
Number Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
26- 12550 DRAWING – Fuselage assembly complete x x NM!
13465 DRAWING – Fuselage assembly complete x NM!
13920 DRAWING – Fuselage assembly complete x NM!
13111 DRAWING – Fuselage assembly complete x x NM!
13906 DRAWING – Fuselage assembly complete x NM!
12626 DRAWING – Cockpit finishing installation x x x x x NM!
13926 DRAWING – Cockpit finishing installation x x NM!
-1 12193-02 ARCH – Headlining, No. 1 1 x x x x x x x NM!
-2 12193-03 ARCH – Headlining, No. 2 1 x x x x x NM!
14083-00 ARCH – Headlining, No. 2 1 x x NM!
-3 12193-04 ARCH – Headlining, No. 3 1 x x x x x x x NM!
-4 12193-05 ARCH – Headlining, No. 4 1 x x x x x NM!
12193-11 ARCH – Headlining, No. 4 1 x x NM!
-5 12193-06 ARCH – Headlining, No. 5 1 x x x x x NM!
12193-12 ARCH – Headlining, No. 5 1 x x NM!

-6 12193-07 ARCH – Headlining, No. 6 1 x x x x x NM!
-7 13854-00 ARCH – Headlining, No. 6 1 x x NM!
-8 13890-00 ARCH – Headlining, No. 7 1 x x NM!
-9 12193-13 ARCH – Headlining, No. 8 1 x x NM!
-10 451-950 ARM REST – Tan leather (PAC No. 12799-00) 1 x NM!
451-955 ARM REST – Brown leather (PAC No. 12799-02) 1 x x x x x x NM!
12799-03 ARM REST – Green leather 1 x x NM!
-11 489-310 ASH TRAY – Rear seat, RH 1 x x x x NM!
-12 489-371 ASH TRAY – With retainer, front 1 x x x x x x NM!
-13 13957-05 BLANKET ASSEMBLY – Fuselage cowl, top of 1 x x NM!
instrument panel (Brown)
13957-00 BLANKET ASSEMBLY – Fuselage cowl, top of 1 x x NM!
instrument panel (Green)
-14 465-148 COAT HOOK – (No. 9941) 2 x x x x x x x NM!
-15 12194-03 HEADLINING ASSEMBLY 1 x x x x x NM!
13939-02 HEADLINING ASSEMBLY 1 x x NM!
-16 12670-22 A PANEL ASSEMBLY – Trim, upholstery, “125” and 1 x x x x x NM!
“135”, LH
-17 12664-02 STRIP – Anchor, upholstered trim panel, “125” 2 x x x x x NM!
and “135”
-18 12187-00 TRIM STRIP – Headlining and top of door frame 1 x x x x x x x NM!
channel, LH
-19 12218-00 TRIM STRIP – Cockpit, rear left post 1 x x x x x NM!

Date of Issue – March 1954 78
